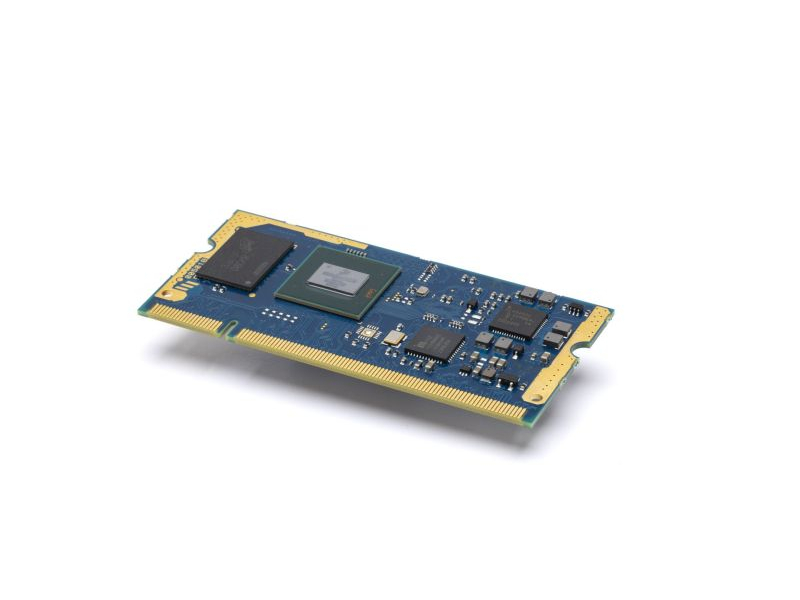

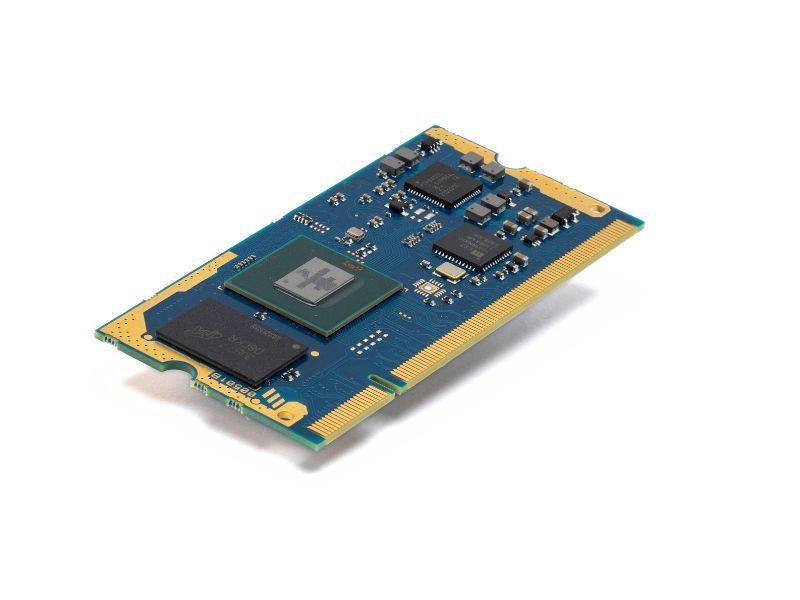

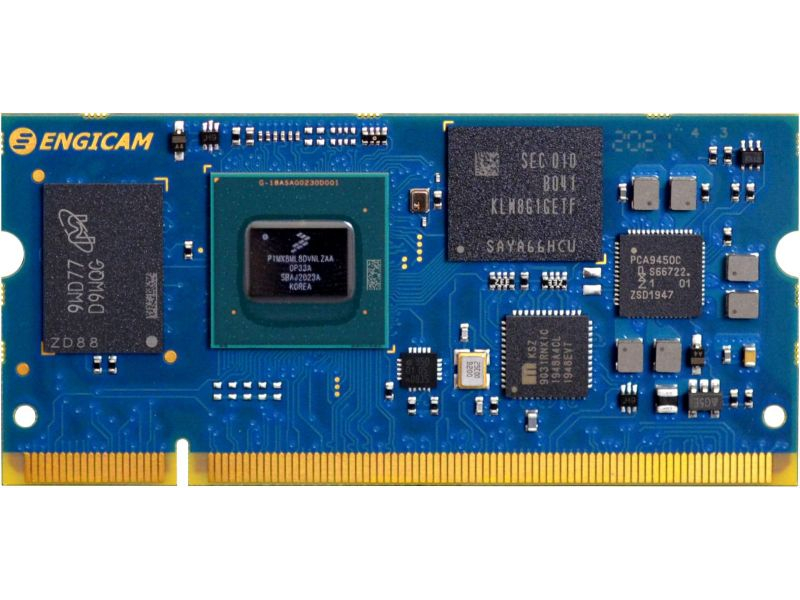

i.Core MX8M Plus

i.Core MX8M Plus is based on i.MX 8M Plus processor equipped with the quad-core Arm® Cortex®-A53 plus Cortex-M7

The i.MX 8MP series features offer powerful video processing with an H.265 video encoder for highly efficient compression in live video streaming applications. It runs at up to 1.8 GHz with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS.

As the first i.MX processor with a machine learning accelerator, the i.MX 8M Plus processor provides substantially high performance for ML inference at the edge.

CPU NXP® i.MX 8M Plus
INTEGRATED MCU Cortex®-M7@ 800 MHz
LAN PHY 1x 1GbE
VIDEO INTERFACES LVDS, MIPI DSI, HDMI, MIPI CSI

Specifications

CPU

  • NXP® i.MX 8M Plus
  • Manufacturer: NXP
  • NPU
  • VPU
  • GPU

Cores

  • ARM
  • Quad Arm® Cortex®-A53 @ up to 1.8GHz processor with a (NPU) up to 2.3 TOPS and Cortex®-M7 CPU @ 800 MHz.

Memory

  • LPDDR4@3600MTs
  • 1GB up to 4GB

Graphics & AI

  • Neural Processing Unit (NPU): Delivers up to 2.3 TOPS
    3D GPU GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2
    2D GPU GC520L

Video Processing Unit Capabilities

  • 1080p60 HEVC (h.265, VP9, VP8) dec; 1080p60 HEVC (h.265) enc

Mass Storage

  • Starting from 8GB eMMC drive soldered on-board

Networking

  • 1x 1Gb Ethernet

USB

  • 2x USB3

PCIe

  • 1
  • PCIe interface Gen3/1-lane

Audio

  • 2x I2S Interface

Peripheral Interfaces

  • 3x UART (Up to 4)
    2x I2C (Up to 5)
    2x SPI (Up to 3)
    JTAG
    2x CAN
    2x SDIO
    GPIOs
    MIPI-CSI – 4 lane

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 67.6 x 32 mm

Product availability

  • 2036
