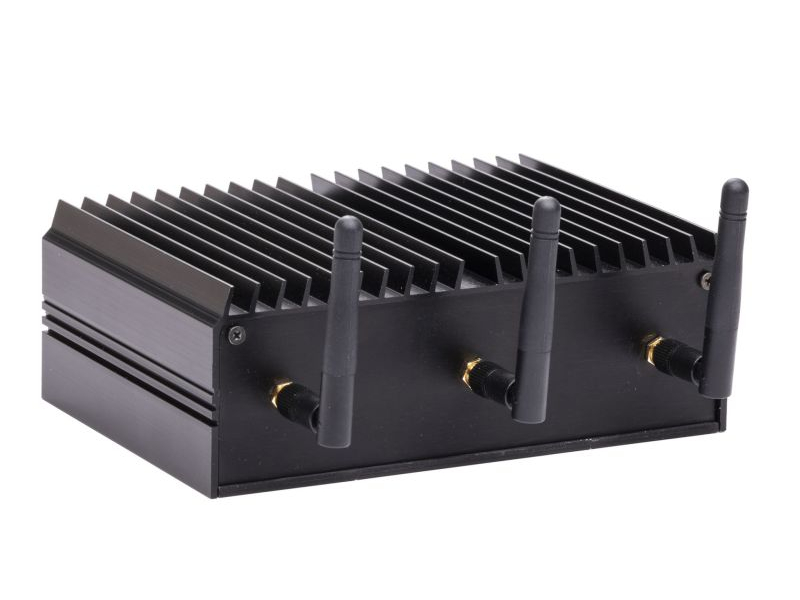

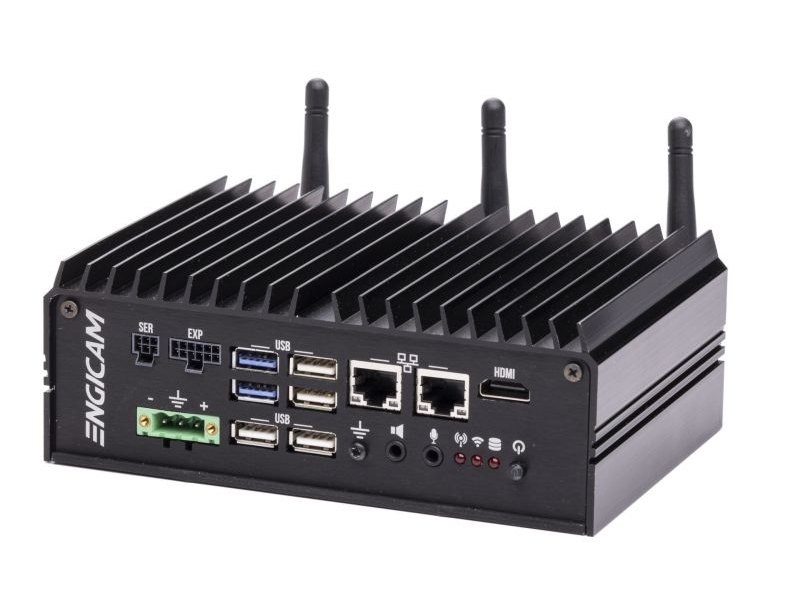

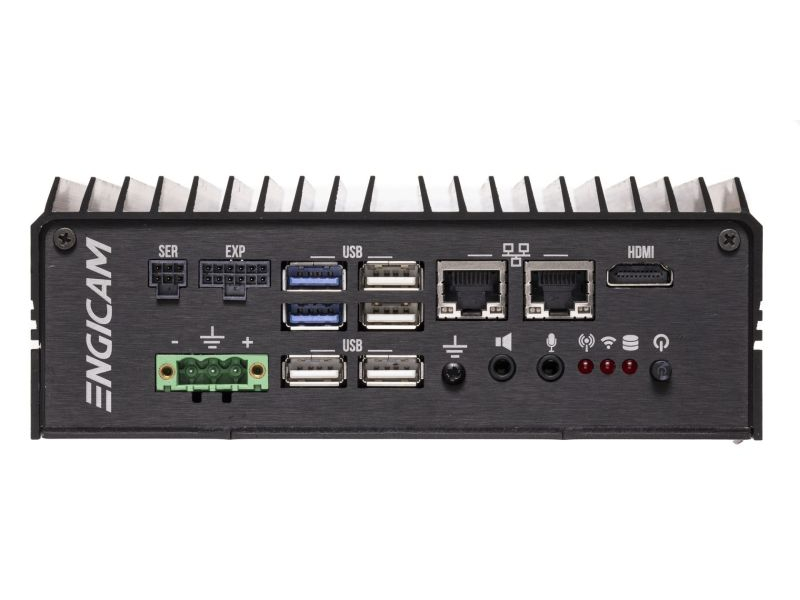

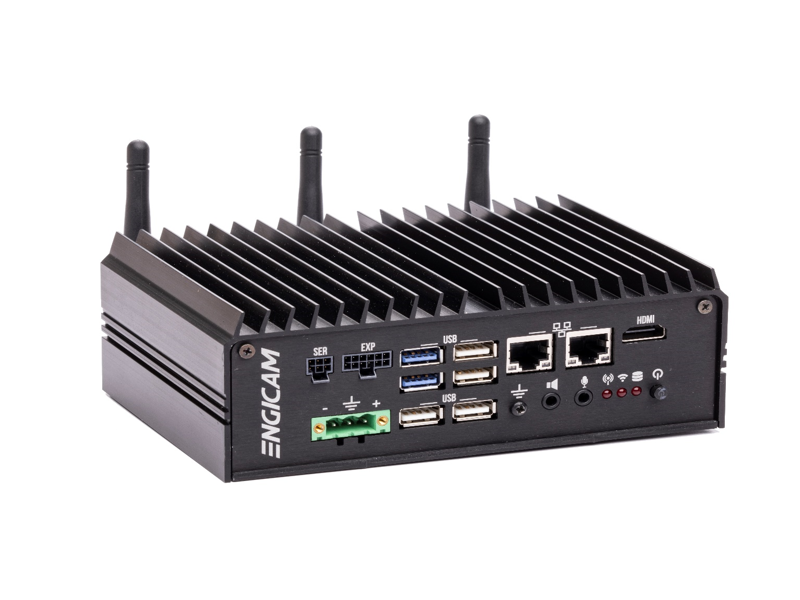

T.Box EHL

High Performance 3.5’’ Boxed PC based on Intel® Elkhart Lake™ series.

Specifications

Features

CPU: Intel Atom® X6211E Dual Core 1.30 GHz , 6W / Intel Atom® X6413E Quad Core 1.50 GHz, 9W / Intel Atom® X6425E Quad Core 2.00 GHz, 12W / Intel Atom® X6425RE Quad Core 1.90 GHz, 12W
Cores: up to 4
Memory: 1x SODIMM up to 16 GB DDR4
Graphics: Intel UHD Graphics Gen11 architecture, with up to 32 Execution Units / MPEG2, WMV9, AVC/H.264, JPEG/MJPEG
Video Interfaces: HDMI up to 4K @60Hz
Video Processing: HEVC/H.265, VP9, WMV/VC1 HW decoding, up to 4k @60 / H.264, HEVC/H.265, JPEG/MJPEG, VP9 HW encoding
Audio: Build in HD
Networking: 2 x Gb Ethernet interface, WLAN/BT M.2 key E, WWAN M.2 Key B with SIM slot
USB: 2 x USB Host 3.1, 2 x USB Host 2.0, 1 x internal USB Host 2.0
Mass storage: 2x SATA slot, 2x SSD M.2 Key M slot, SSD M.2 Key B slot
Mini slot: 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B
Dimensions: 166 x 114 x 60 mm
Power supply: +12V to +24V

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Hardware manual

T.Box_EHL_USR_manual_1.0.1.pdf 2.50M login required

Fact Sheet

T.Box_EHL__Flyer.pdf 414.93K

Products to complete your design

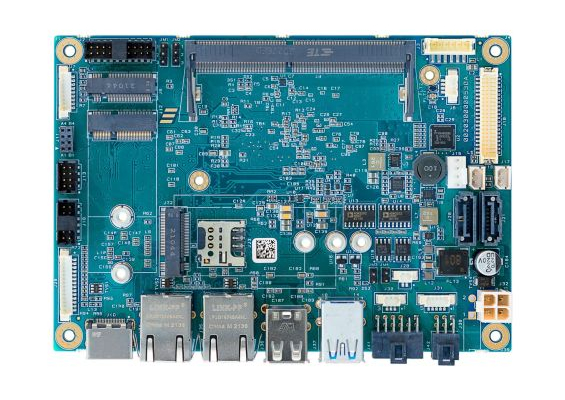

T.Board EHL
