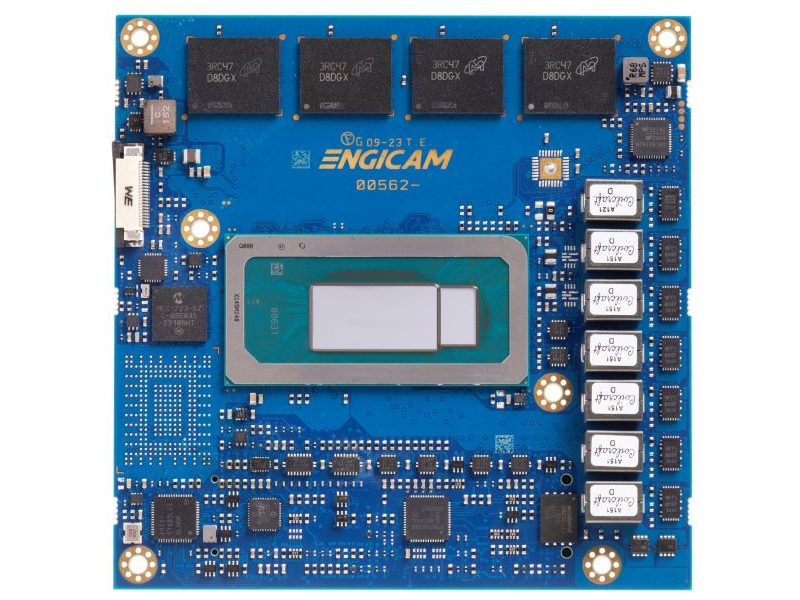

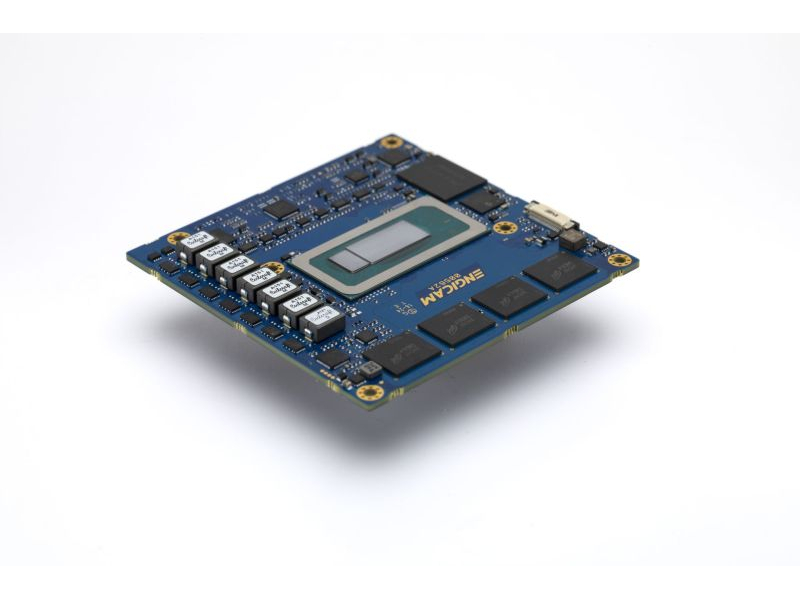

COMe 6C-RPL

The new Engicam COMe module, based on Intel® processors RAPTOR LAKE™ for IoT applications with performance architecture and industrial-grade capabilities, enables IoT use cases with up to 1.08x times faster in single-thread performance  and up to 1.05x times faster in multi-thread performance vs. the previous generation processors.

CPU Intel ® Raptor Lake
RAM LPDDR5@6400MTs
PCIE INTERFACES Up to 8x PCIe interfaces Gen3
DIMENSIONS 95 x 95 mm

Specifications

CPU

  • Intel ® Raptor Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • i7-1365URE, i5-1345URE, i3-1315URE, i7-1370PRE, i5-1350PRE, i3-1320PRE, i3-1320PRE, i3-1320PRE

Memory

  • LPDDR5@6400MTs
  • 8GB up to 16GB

Graphics & AI

  • Intel® Iris Xe Graphics architecture Intel® Deep Learning Boost (VNNI) DirectX 12.1, OpenGL 3.0, IPU 6.0

Video Processing Unit Capabilities

  • HEVC/H.265, AVC/H.264, VP9, JPEG/MJPEG dec HEVC/H.265, AVC/H.264, VP9, JPEG enc

Mass Storage

  • Starting from 64GB NVMe PCIe

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 8x USB2
  • 4x USB3

PCIe

  • 8
  • PCIe interface Gen3/up to 8-lane

Audio

  • HDA interface

Peripheral Interfaces

  • SM Bus, I2C, eSPI/LPC (option), UART, GPIOs, CSI connector, JTAG EC connector

Power Supply

  • +8.5 to 20 V

Operating Temperature

  • -25° up to 85°

Dimensions

  • 95 x 95 mm

Product availability

  • 2034

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

COMe Board

COMe Carrier Board compliant with standard COM Express type 6 and basic COM Express type 10

View product
