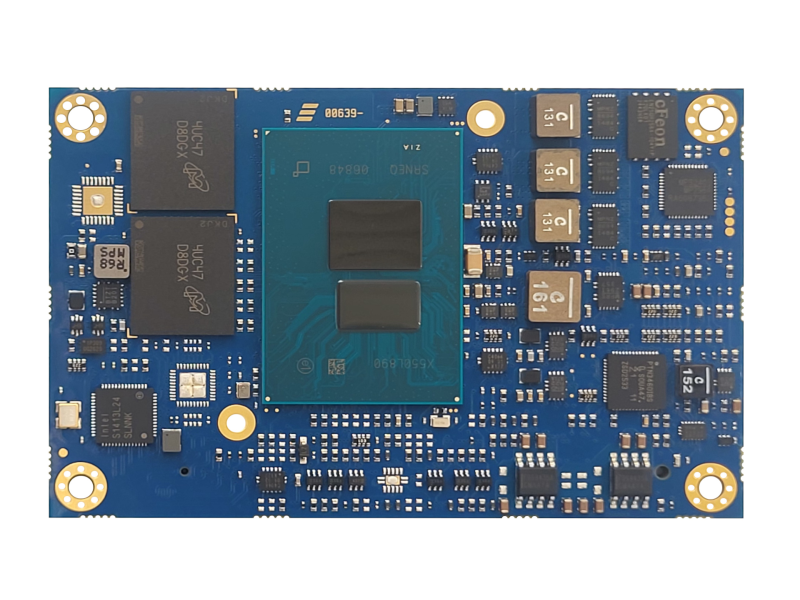

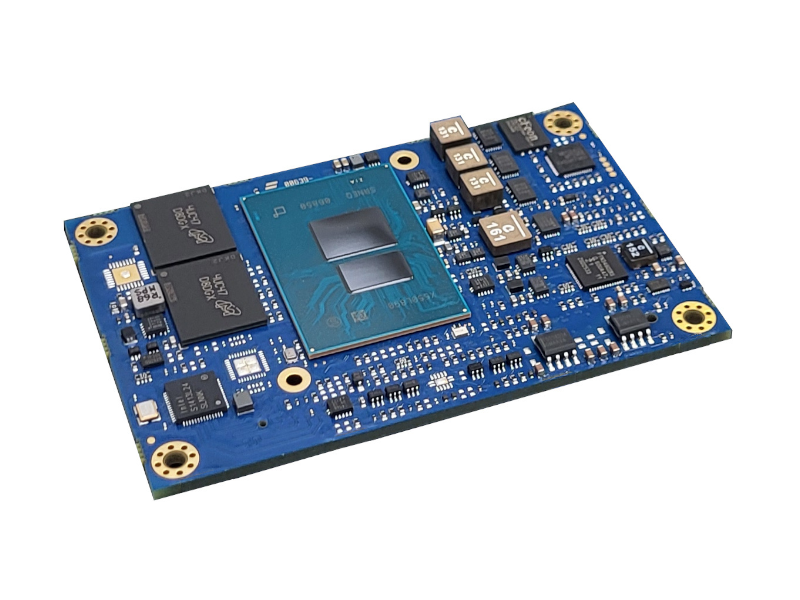

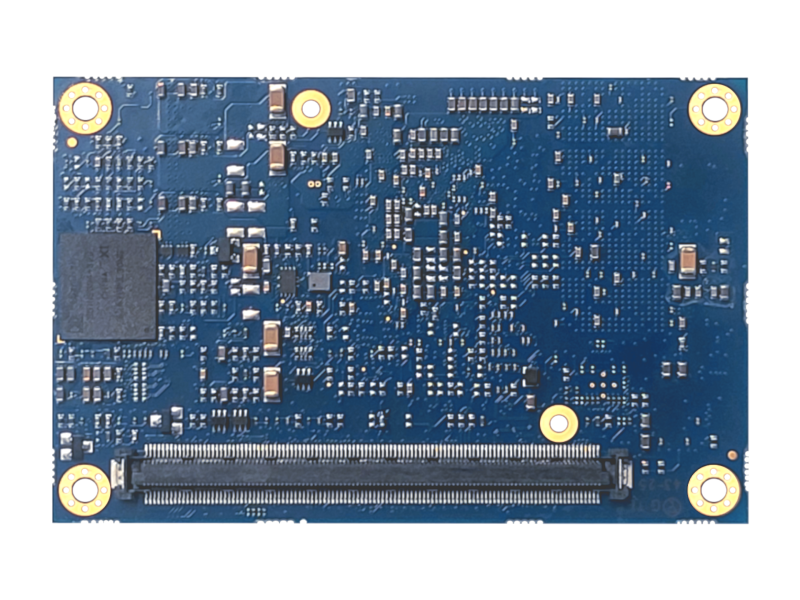

COMe 10M-ASL

The COMe 10M-ASL is a compact COM Express® Mini Type 10 module based on Intel® Amston Lake processors, designed for high-efficiency edge computing, AI, and multimedia applications. It combines scalable performance, industrial reliability, and long-term availability in a small form factor, making it ideal for space-constrained embedded systems.

CPU Intel®Amston Lake
RAM LPDDR5@4800MTs
LAN PHY 1x 2.5 GbE
DIMENSIONS 55 x 84 mm

Specifications

CPU

  • Intel®Amston Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • Intel Atom® x7000RE Series
    Intel Atom® x7000C Series

Memory

  • LPDDR5@4800MTs
  • 4GB up to 16GB

Graphics & AI

  • UHD Intel
    OpenGL 4.6
    OpenCL 3.0
    Direct X 12.1
    IPU 6

Video Processing Unit Capabilities

  • HEVC/ H265, VP9, AV1 dec
    HEVC/H265 enc

Mass Storage

  • Starting from 4GB eMMC soldered on board
    2x SATA

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 8x USB2
  • 2x USB3

PCIe

  • 4
  • PCIe interface Gen3/up to 4-lane

Audio

  • HDA interface

Peripheral Interfaces

  • SDIO, SM Bus, I2C, LPC/eSPI, SPI, UART, GPIOs

Power Supply

  • +5 to 20 VDC

Operating Temperature

  • -40° up to 85°
  • Valid for Intel Atom® x7000RE Series

Dimensions

  • 55 x 84 mm

Product availability

  • 2034
