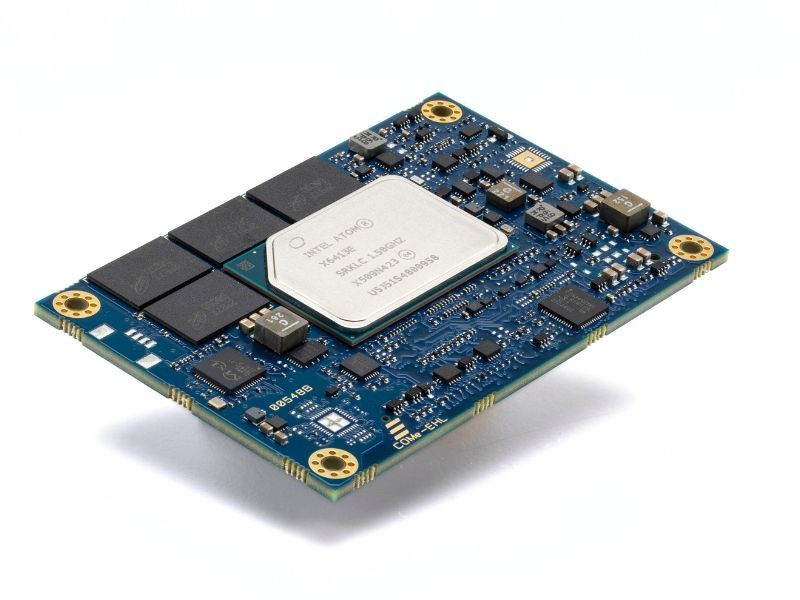

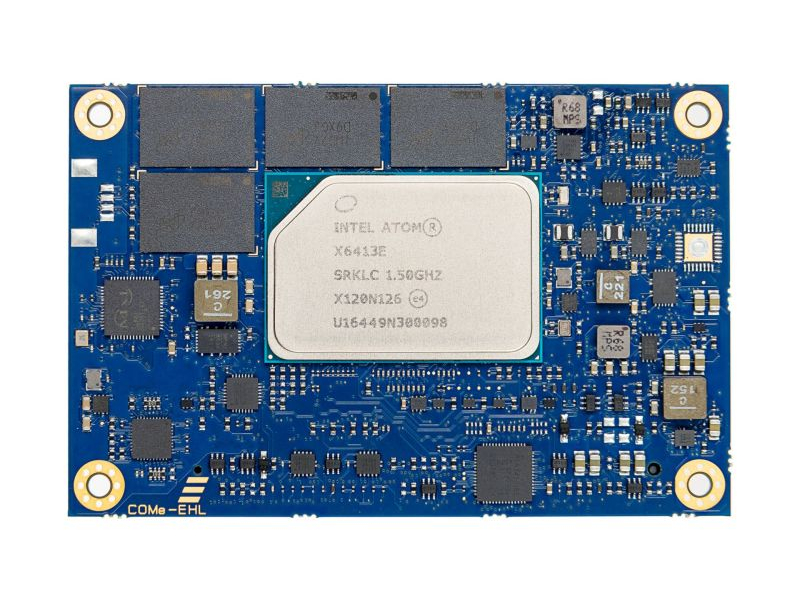

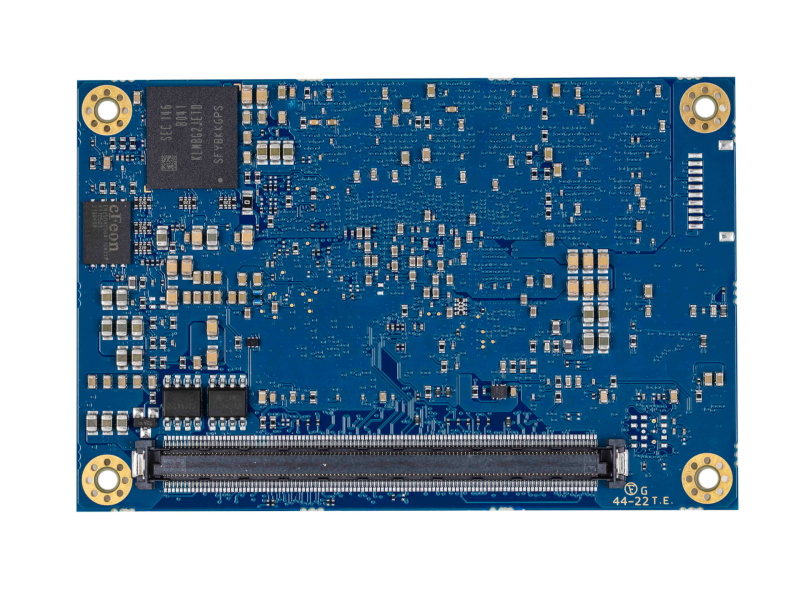

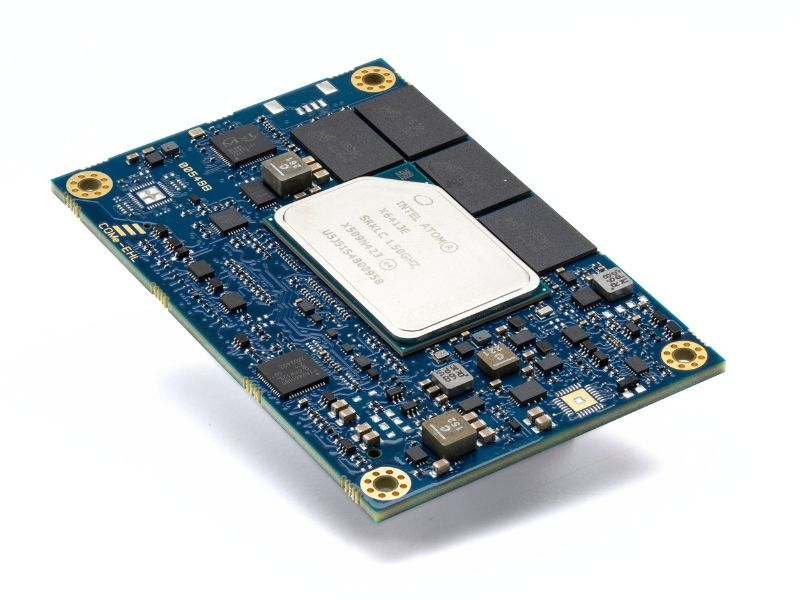

COMe 10M-EHL

The new Engicam COMe module, based on Intel® processors ELKHART LAKE series ATOM x6000E, Pentium and Celeron.  CPU and graphics performance with integrated IoT features, real-time performance, manageability, security, and functional safety

CPU Intel® Elkhart Lake
LAN PHY 1x 2.5 GbE
USB INTERFACES 8x USB2.0, 2x USB 3.0
PCIE INTERFACES 6x PCIe interfaces Gen3

Specifications

CPU

  • Intel® Elkhart Lake
  • Manufacturer: Intel
  • VPU
  • GPU

Cores

  • x86
  • Up to 4

Memory

  • LPDDR4@3733MTs
  • 2GB up to 16GB

Graphics & AI

  • Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2, Vulkan 1.0 APIs, Dedicated FIVR for Graphics, Intel® Virtualization Technology for Directed I/O (VT-d)

Video Processing Unit Capabilities

  • HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HEVC/H.265, H.264, VP9, JPEG/MJPEG enc

Mass Storage

  • Starting From 4GB eMMC drive soldered on-board

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 8x USB2
  • 2x USB3

PCIe

  • 6
  • PCIe interface Gen3/up to 6-lane

Audio

  • HDA Interface

Peripheral Interfaces

  • SDIO, SM Bus, I2C, LPC/eSPI, SPI, UART/CAN(optional), GPIOs

Power Supply

  • +5 to 20 VDC

Operating Temperature

  • -40° up to 85°

Dimensions

  • 55 x 84 mm

Product availability

  • 2032

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

COMe Board

COMe Carrier Board compliant with standard COM Express type 6 and basic COM Express type 10
