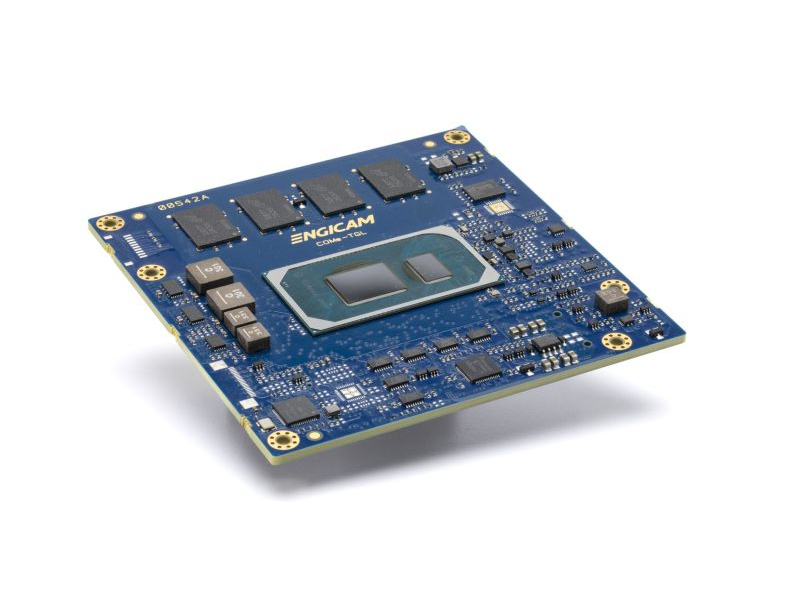

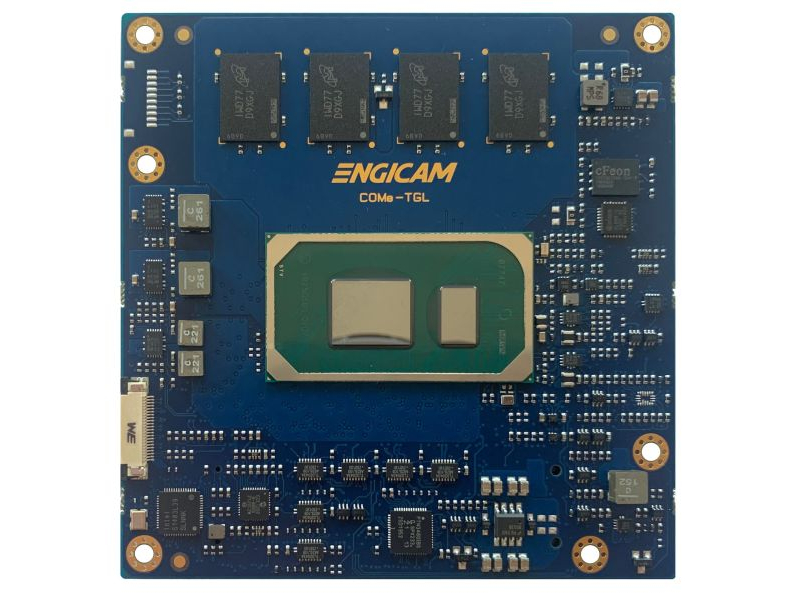

COMe 6C-TGL

A new Engicam COMe module, based on Intel® TIGER LAKE processors with the new Intel® Iris® Xe graphics. The platform offers up to 2.95 times higher graphics performance. The module combines a high-performance CPU, single-thread performance of up to 23%, and multi-thread up to 19% faster than the previous generation processors.

CPU Intel® Tiger Lake
POWER SUPPLY 31.2 W
PEG INTERFACES 1x PEG 4.0
OPERATING TEMPERATURE -40° up to 85°

Specifications

CPU

  • Intel® Tiger Lake
  • Manufacturer: Intel
  • VPU
  • GPU

Cores

  • x86
  • Up to 4

Memory

  • LPDDR4@4266MTs
  • 4GB up to 32GB

Graphics & AI

  • Integrated Iris Xe Graphics Core Gen12 architecture, with up to 96 Execution Units MPEG2, WMV9, AVC/H.264, JPEG/MJPEG

Video Processing Unit Capabilities

  • HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60. AVC/H.264, HEVC/H.265, JPEG, VP9 HW encoding

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 8x USB2
  • 4x USB3

PCIe

  • 8

Audio

  • HDA Interface

Peripheral Interfaces

  • UART, SM Bus, I2C, LPC/eSPI, SPI, GPIOs

Power Supply

  • +12V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 95 x 95 mm

Product availability

  • 2032

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

3D

Technical Wiki & Design Resources

Online documentation and technical knowledge base for this product.
