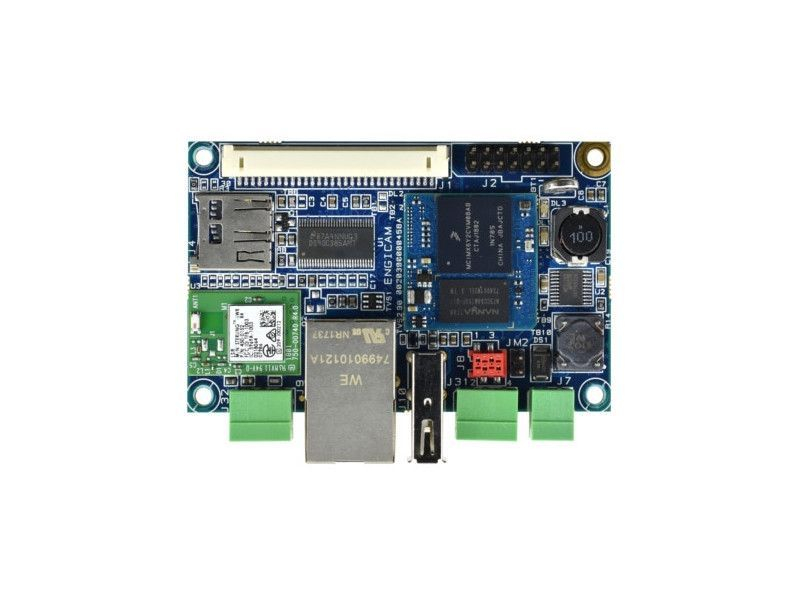

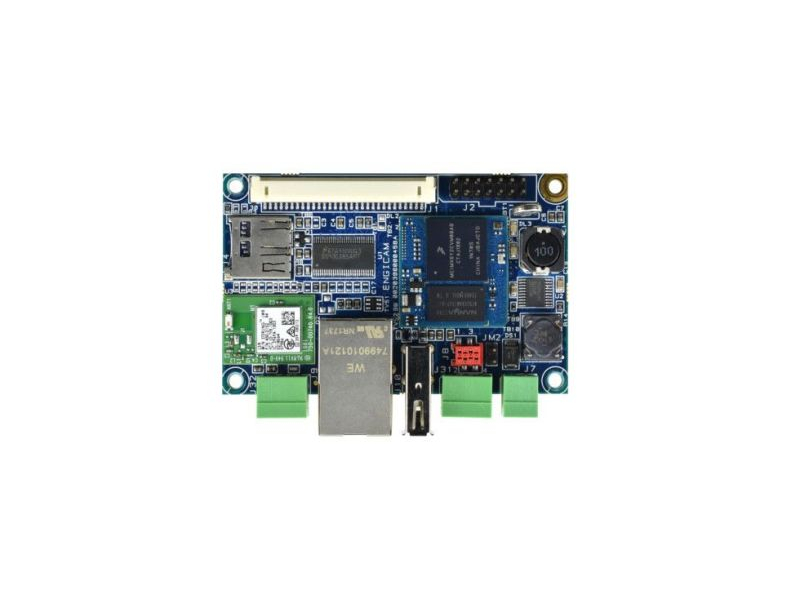

MicroDev 2.0

General-purpose miniature carrier board based on MicroGEA STM32MP1 & MicroGEA MX6ULL modules. The MicroDev 2.0 provides a wide variety of connectivity interfaces like CAN bus (available on MicroGEA MX6ULL only) and LTE interfaces

BASED ON MicroGEA STM32MP1, MicroGEA MX6ULL
DIMENSIONS 80 x 50 mm
OPERATING TEMPERATURE Industrial qualified

Specifications

Features

  • Industrial temperature range
  • Wide 7 to 40 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • 1 x microSD
  • 1 x RS232
  • 1 x USB Type A
  • 1 x CAN Bus (Not Available on MicroGEA STM32MP1)
  • Optional RS485 (No CAN Bus)
  • 1 x RS232 for OS Console
  • 1 x expansion connector (I2C, CAN, USB, UART, up to 10 GPIO)
  • General purpose LCD connector: 1x 24-bit single channel LVDS
  • 1x PWM for backlight control and power supply for LCD
  • CTP I/F: 1x USB, 1 x I2C
  • Compact format: 80 x 50 mm
  • WiFi + BT (option)
  • UMTS LTE with sim connector (option)
  • Plastic box enclosure (option)
