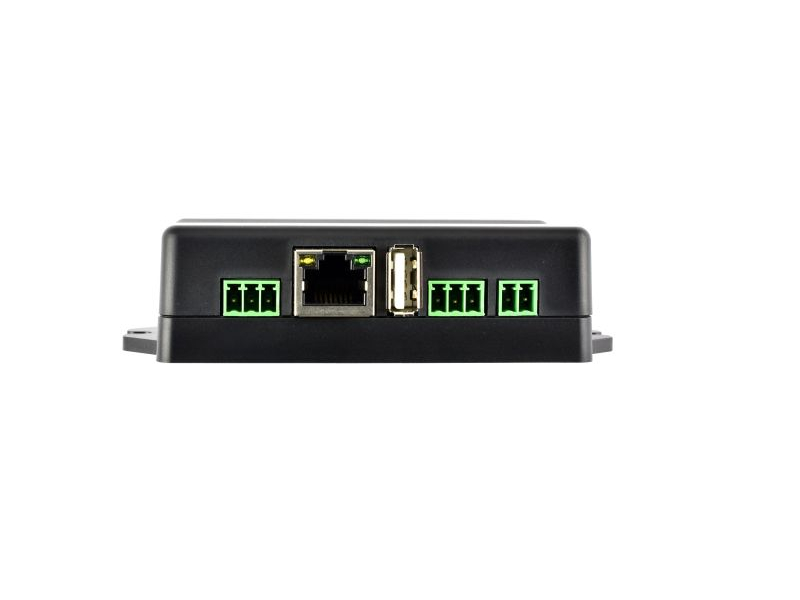

MicroDev 3.0 IOT Gateway

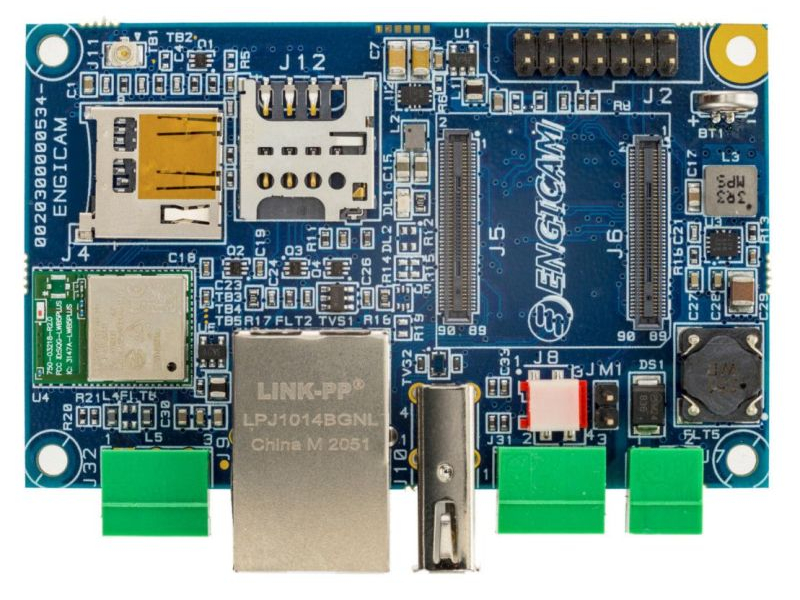

A general-purpose miniature carrier board based on MicroGEA modules. The MicroDev provides global LTE with a Sim connector and WiFi + BT LWB5+.

Specifications

Features

modules compliant
Industrial temperature range
Wide 7 to 30 Vdc single power supply
1 x 10/100 Ethernet interface
1 x microSD
1 x USB Type A
1 x RS485
1 x RS232
1 x RS232 for OS Console
Tiny Size: 80 x 50 mm
WiFi + BT LWB5+
Global LTE with sim connector
Plastic box enclosure

Certification - and in progress

Documentation & Software

Access technical documents, software, and support resources.

Accessories

Cable_Map.jpg 385.95K

Fact Sheet

MicroDev_3.0_IoT_Gateway_Flyer.pdf 238.26K

Hardware manual

MicroDev_3.0_IoT_Gateway_USR_Manual_1.0.4.pdf 2.41M login required

3D

This content is available for authorized users only. login required

Technical Wiki & Design Resources

Online documentation and technical knowledge base for this product.
