MicroDev

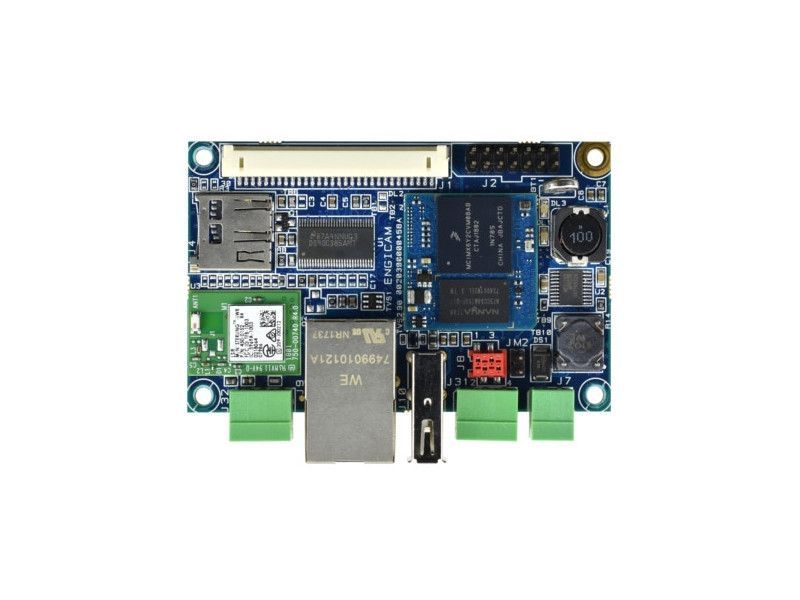

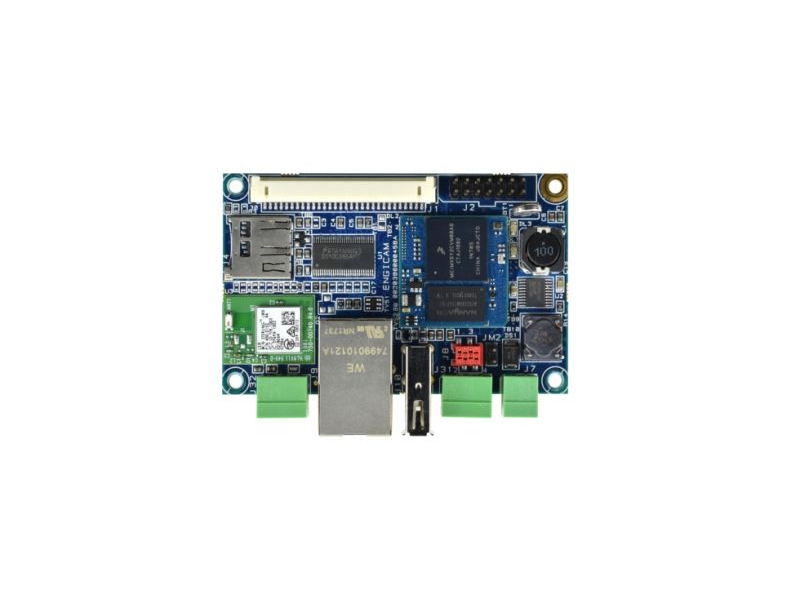

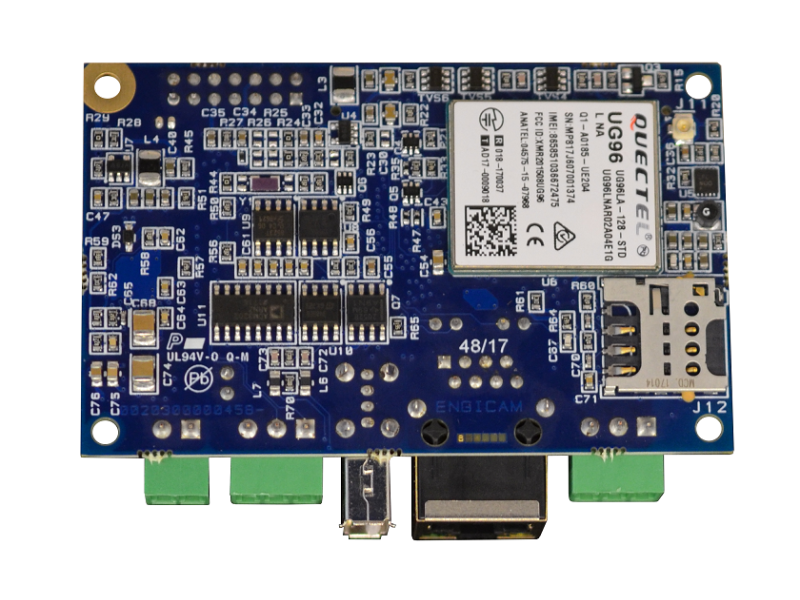

General-purpose miniature carrier board based on MicroGEA STM32MP1 & MicroGEA MX6ULL modules. The MicroDev provides a wide variety of connectivity interfaces like WiFi, BT, Ethernet, USB, and serial ports.

FORM FACTOR Compact/miniature

NETWORKING 3G, WiFi, BT, Ethernet

PERIPHERAL INTERFACES USB, serial ports

OPERATING SYSTEM Linux Yocto

Specifications

Features

MicroGEA STM32MP1 & MicroGEA MX 6ULL Module compliant
Industrial temperature range
Wide 7 to 40 Vdc single power supply
1 x 10/100 Ethernet interface
1 x microSD
1 x USB Type A
1 x RS485
1 x RS232
1 x RS232 for OS Console
1 x expansion connector (I2C, CAN, USB, UART, up to 10 GPIO)
General purpose LCD connector: 1x 24-bit single channel LVDS
1x PWM for backlight control and power supply for LCD
CTP I/F: 1x USB, 1 x I2C
Tiny Size: 80 x 50 mm
WiFi + BT (option)

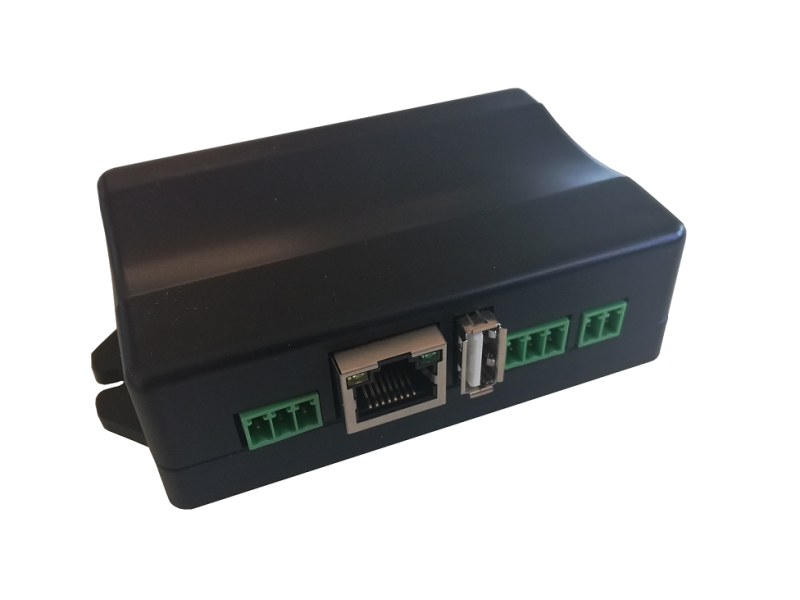

Plastic box enclosure (option)

Documentation & Software

Access technical documents, software, and support resources.

Accessories

MicroDev-harnesses.png 200.64K

Fact Sheet

MicroDev_Carrier_Board_Flyer.pdf 245.48K

Hardware manual

MicroDev_carrier_USR_Manual_1.1.0.pdf 8.23M login required

PCN

PCN_2020.11-1.pdf 170.45K login required
PCN_2602-2.1.pdf 115.11K login required
PCN_2602-2.pdf 113.90K login required
PCN_2602-2_MicroDev.pdf 108.50K login required

OS Images

This content is available for authorized users only. login required

3D

This content is available for authorized users only. login required
