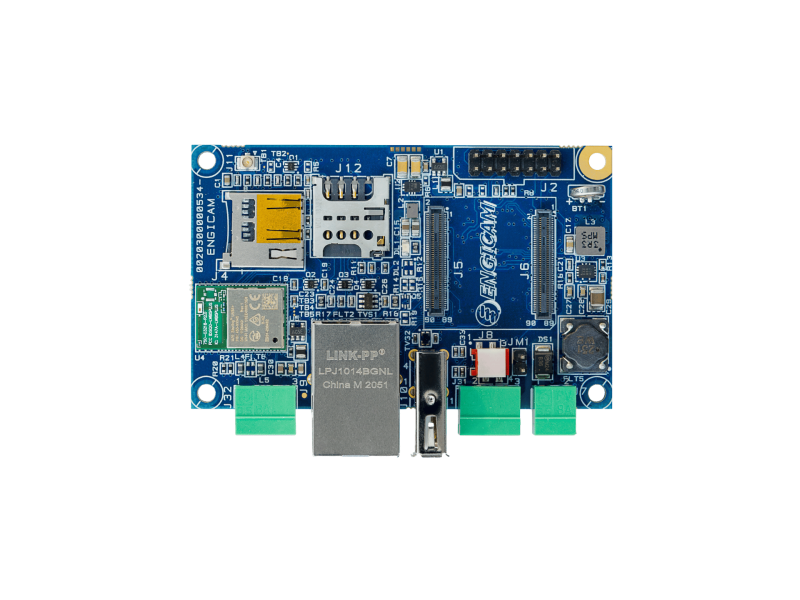

MicroDev 3.0

A  general-purpose miniature carrier board based on MicroGEA modules. The MicroDev provides global LTE with a SIM connector and WiFi + BT LWB5+.

SUPPORTED SOMs MicroGEA modules
NETWORKING WiFi + BT LWB5+
ENCLOSURE Plastic box (optional)

Specifications

Features

  • MicroGEA Module compliant
  • Industrial temperature range
  • Wide 7 to 30 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • 1 x microSD
  • 1 x USB Type A
  • 1 x RS485 (or CAN Bus optional)
  • 1 x RS232
  • 1 x RS232 for OS Console
  • Tiny Size: 80 x 50 mm
  • WiFi + BT LWB5+
  • Global LTE with sim connector
  • Plastic box enclosure (optional)



Certification - -

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

3D
