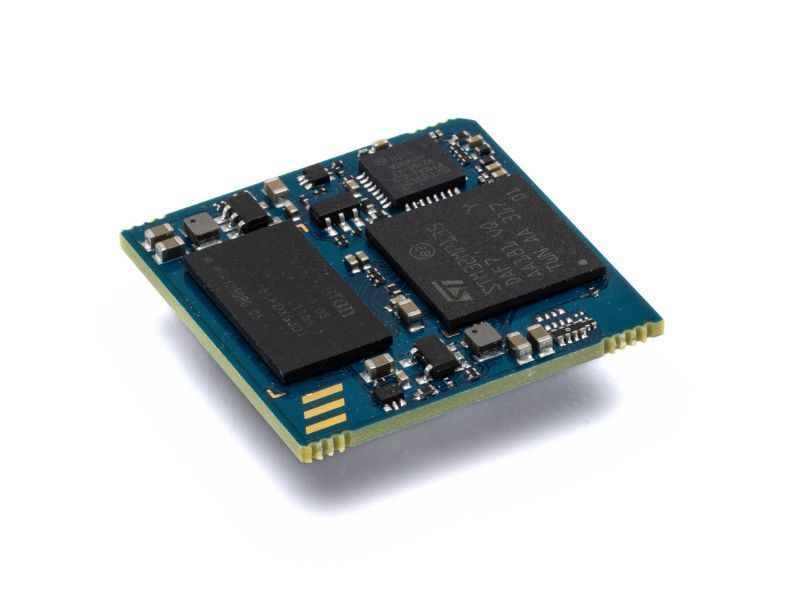

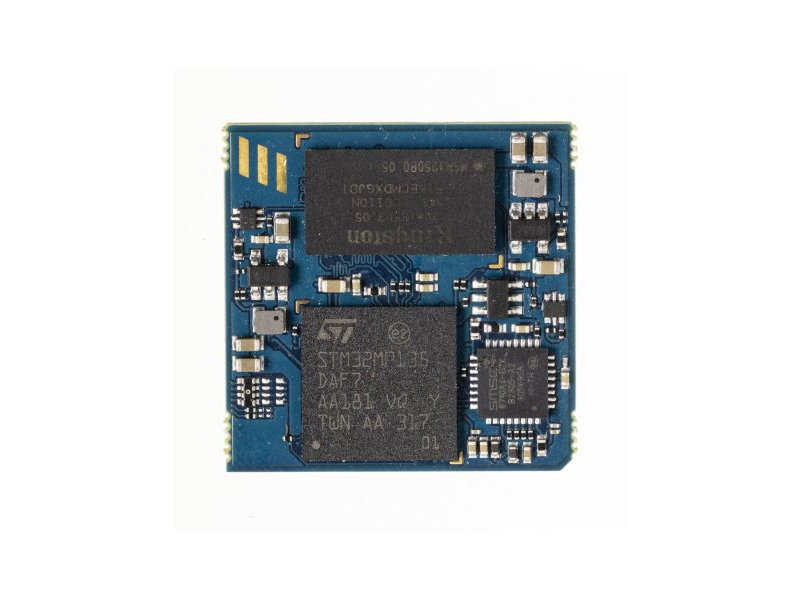

MicroGEA STM32MP13

Engicam presents the new MicroGEA STM32MP13 based on the latest ST® processor equipped with Arm® Cortex®-A7 up to 1GHz. The module offers energy-efficient performances and is designed to provide full capabilities both in high-end wearables, and other low-power embedded and consumer applications.

CPU ST® STM32MP13x
RAM DDR3L@1066MTs
POWER SUPPLY 0.87W@3.3V
DIMENSIONS 25 x 25 mm

Specifications

CPU

  • ST® STM32MP13x
  • Manufacturer: ST

Cores

  • ARM
  • Arm® Cortex®-A7 up to 1 GHz

Memory

  • DDR3L@1066MTs
  • 512MB up to 1GB

Graphics & AI

  • LCD-TFT controller, up to 24-bit // RGB888 up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps

Video Processing Unit Capabilities

  • Up to WXGA (1366 × 768)

Mass Storage

  • 4GB eMMC drive soldered on-board

Networking

  • 1x 10/100 Ethernet

USB

  • 1x OTG
  • 1x USB2

PCIe

  • NO

Audio

  • SAI Interface

Peripheral Interfaces

  • UART, I2C, SPI, CAN, SDIO, GPIOs

Power Supply

  • single 3.3V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 25 x 25 mm

Product availability

  • 2036

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

BSP

3D
