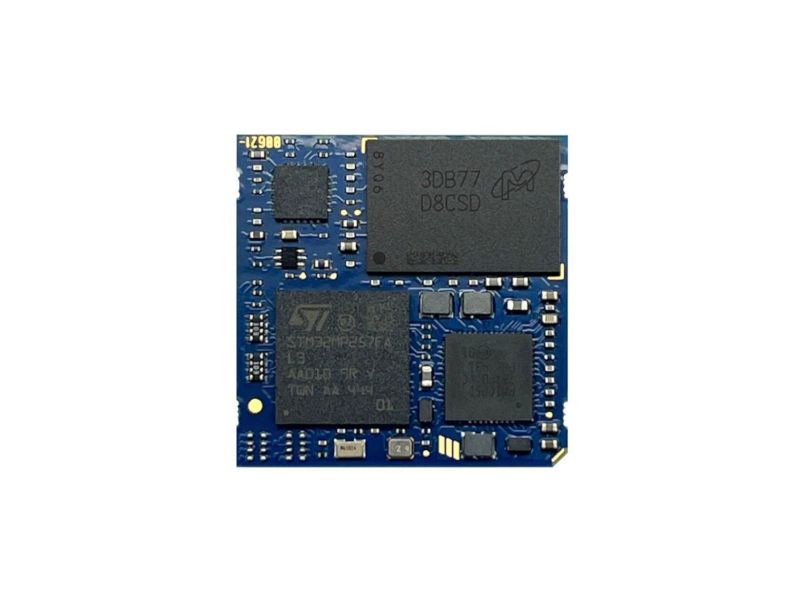

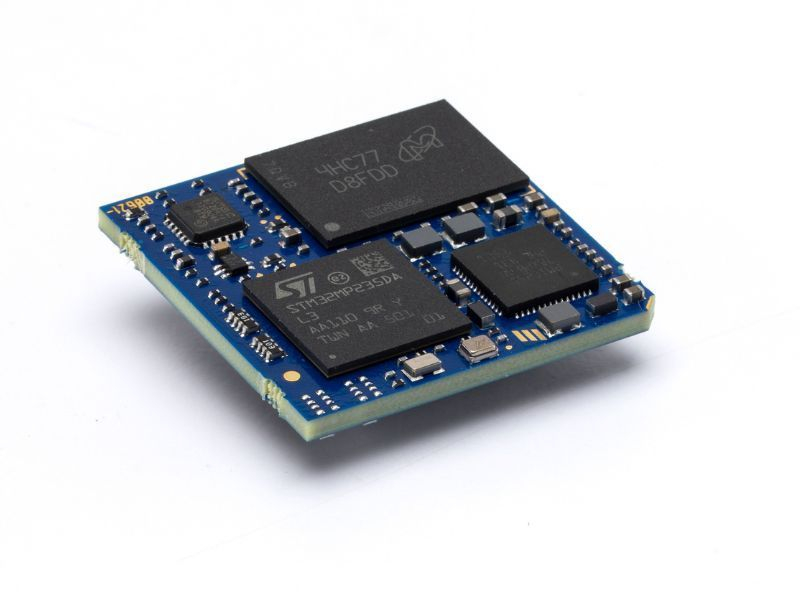

MicroGEA STM32MP2

MicroGEA STM32MP2 is designed around the Next-gen STM32 MPUs by ST Microprocessors ST STM32MP25x, 23x, 21x, featuring NPU at 1.35 TOPS and 3D GPU  for secure Industry 4.0 and advanced edge computing applications in a compact form factor.





CPU ST® STM32MP2x
RAM LPDDR4@2400MTs
AI CAPABILITIES 1.35 TOPS
DIMENSIONS 25 x 25 mm

Specifications

CPU

  • ST® STM32MP2x
  • Manufacturer: ST
  • NPU
  • GPU

Cores

  • ARM
  • Single or dual core Arm® Cortex-A35 @1.5 GHz and Arm® Cortex-M33@400MHz

Memory

  • LPDDR4@2400MTs
  • 1GB up to 2GB

Graphics & AI

  • 3D GPU and NPU: VeriSilicon® GC8000UL
    Up to 900 MHz
    TensorFlowLite - ONNX - Linux NN
    OpenGL® ES 3.2.8 – Vulkan 1.2
    OpenCL™ 3.0, OpenVX™ 1.3
    Up to 150 Mtriangle/s, 900 Mpixel/s

Video Processing Unit Capabilities

  • 1080p60 HEVC (h.264, VP8) dec
    1080p60 HEVC (h.264, VP8) enc

Mass Storage

  • Starting from 8 GB, soldered on-board

Networking

  • 1x 10/100 Ethernet

USB

  • 2x USB2

PCIe

  • NO

Audio

  • I2S interface

Peripheral Interfaces

  • UART, I2C, SPI, CAN Bus, PWM, SDIO i/f, JTAG i/f, GPIOs

Power Supply

  • single 5V

Operating Temperature

  • -25° up to 85°

Dimensions

  • 25 x 25 mm

Product availability

  • 2036

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Errata

  • ERRATA_MicroGEA_STM32MP2_Engineering_Sample_REV2.pdf 83.10K

Fact Sheet

Hardware manual

BSP

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

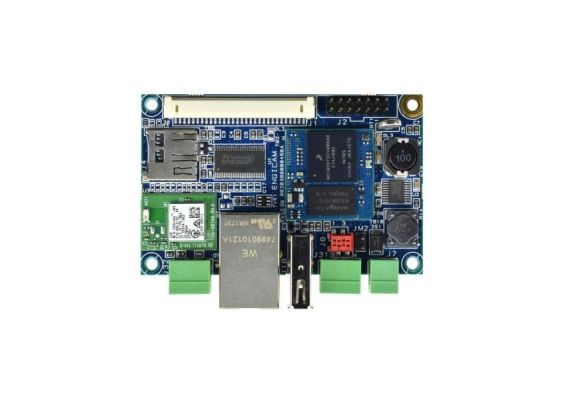

MicroDev 2.0

Available with CAN Bus and LTE interfaces.

View product

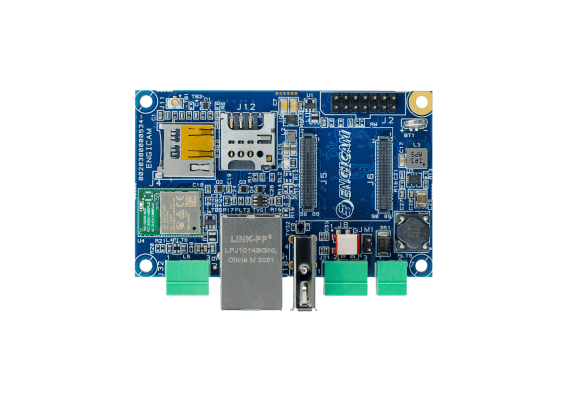

MicroDev 3.0

MicroDev 3.0 based on MicroGEA modules

View product

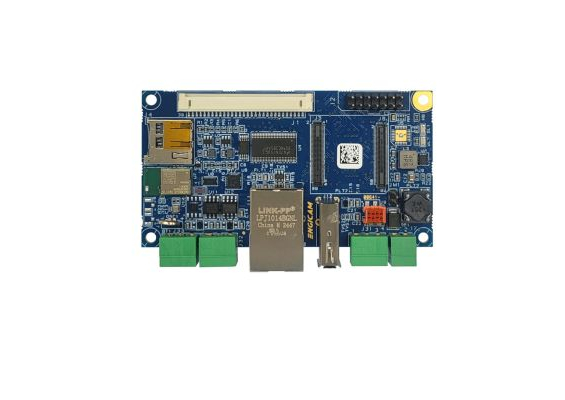

MicroTouch

Carrier board for MicroGEA modules

View product

Products to complete your design

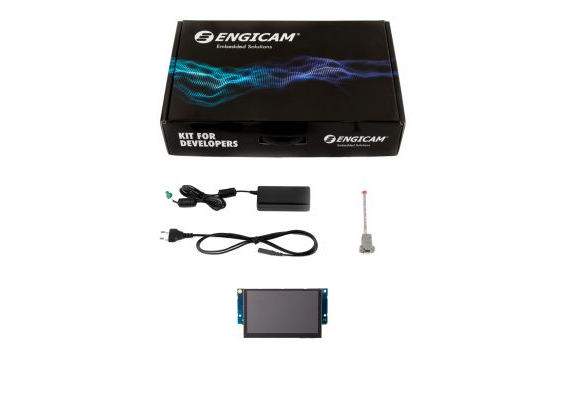

MicroGEA Capacitive Starter Kit 5"

MicroGEA Form Factor Capacitive Evaluation Board 5"

View product

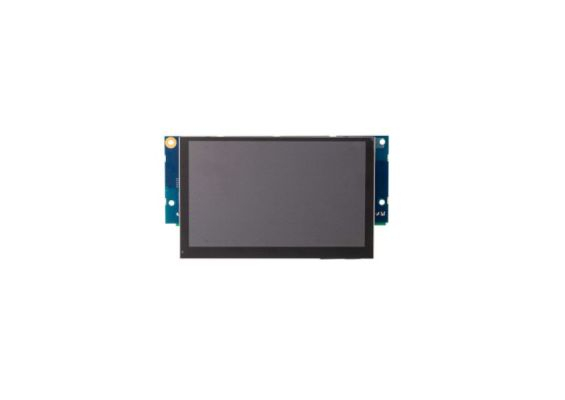

Micro 5"

Capacitive touch screen 5” open frame MicroSOM standard.

View product

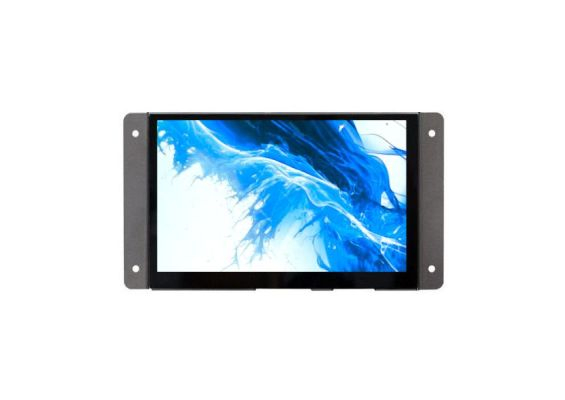

MicroTouch Open Frame 7"
