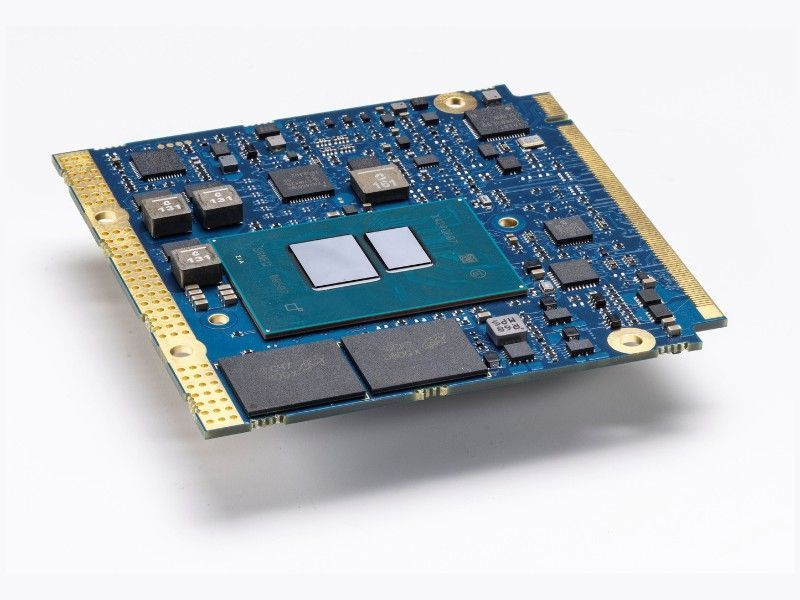

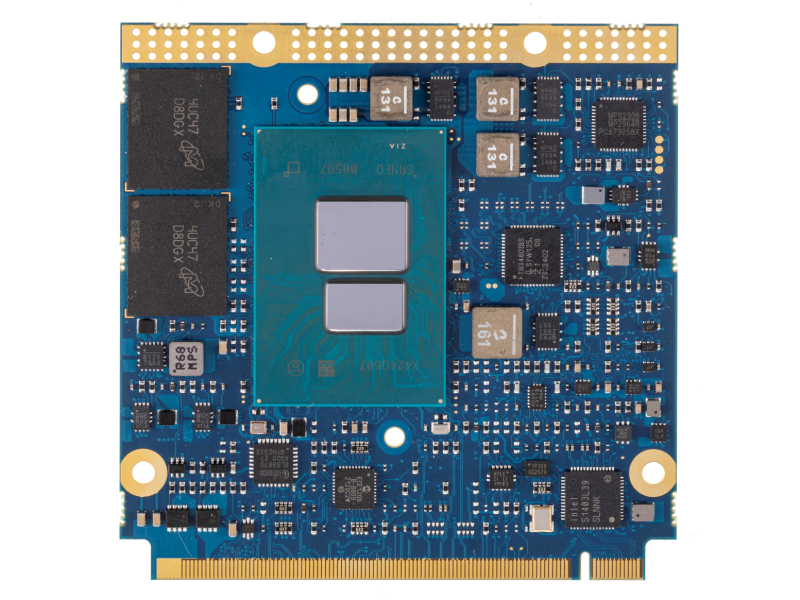

Qseven ADL-N

The new Engicam module, developed on the Qseven® standard, is based on the Intel® Alder Lake™ processor series, featuring high-performance multimedia processing, integrated IoT features, and support for machine learning, connectivity, and HMI applications.

SAMPLE AVAILABLE!

CPU Intel®Alder Lake
RAM LPDDR5@4800MTs
AI CAPABILITIES Integrated IoT features
GRAPHICS 3D GPU

Specifications

CPU

  • Intel®Alder Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • Intel Core™ i3 N-Series
    Intel Atom® x7000E Series
    Intel Processor N Series

Memory

  • LPDDR5@4800MTs
  • up to 16GB

Graphics & AI

  • UHD Intel
    OpenGL 4.6
    OpenCL 3.0
    Direct X 12.1
    IPU 6

Video Processing Unit Capabilities

  • HEVC/ H265, VP9, AV1 dec
    HEVC/H265 enc

Mass Storage

  • Starting from 4 GB eMMC soldered onboard

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 4x USB2
  • 2x USB3

PCIe

  • 4

Audio

  • I2S i/f
    HDA

Peripheral Interfaces

  • UART
    I2C
    SPI
    CAN Bus
    SDIO
    2x SATA
    Watchdog Trigger
    LPC
    Thermal Control
    Fan Control

Power Supply

  • single 5V

Dimensions

  • 70 x 70 mm

Product availability

  • 2033
