Qseven ASL

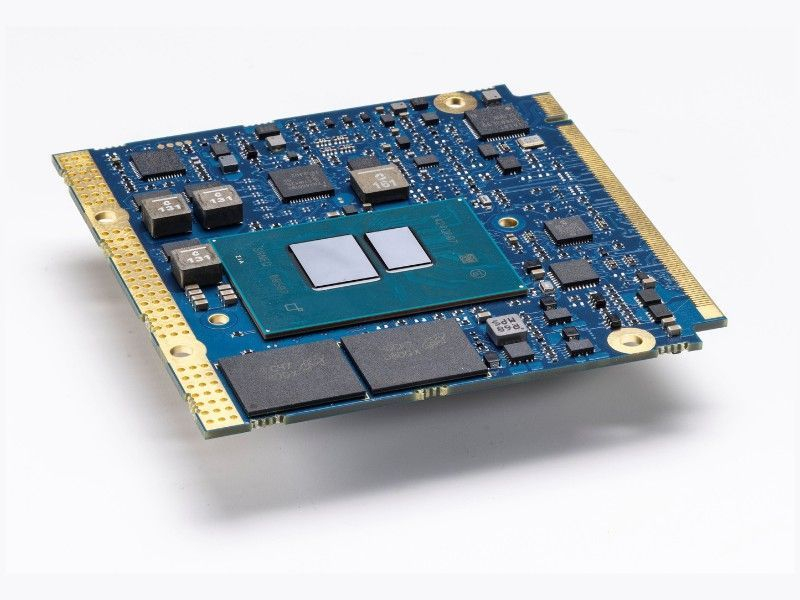

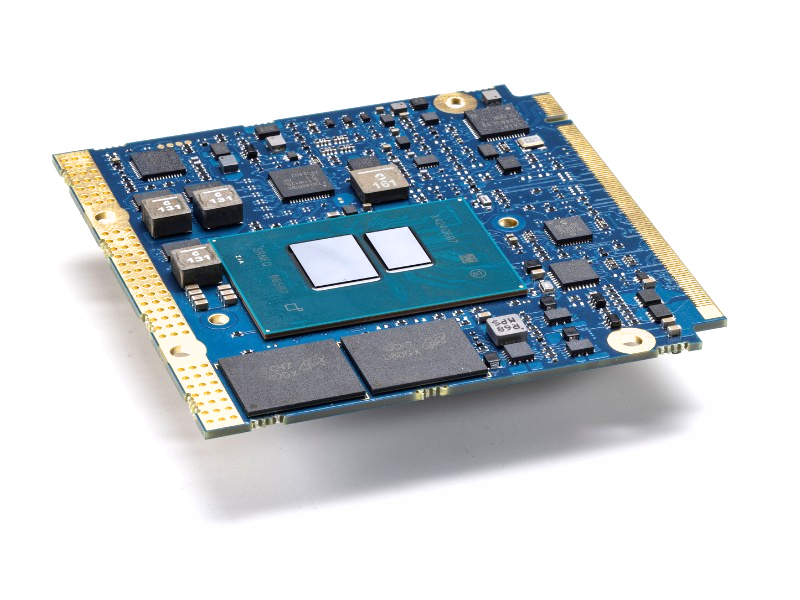

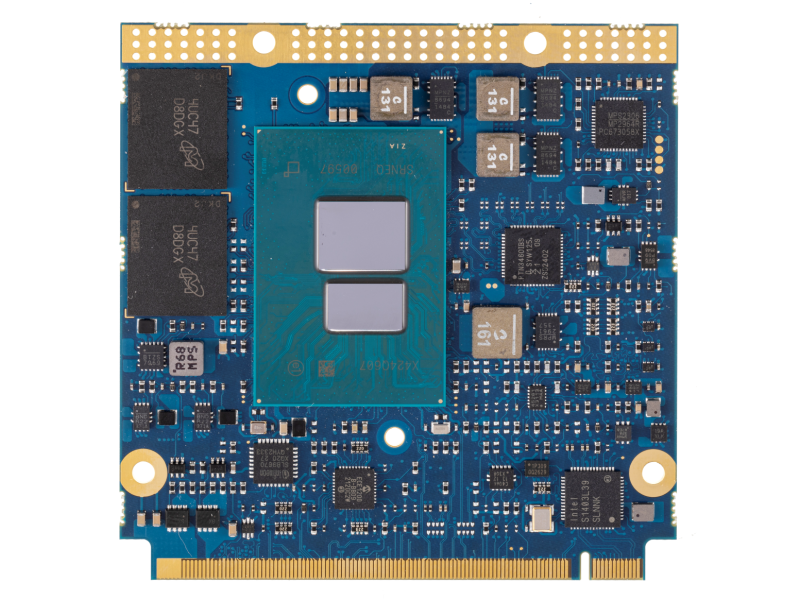

Developed on the Qseven® standard, this SoM is based on the Intel® Atom Lake™ processor series, featuring high-performance multimedia processing, integrated IoT features, and support for machine learning, connectivity, and HMI applications.

SAMPLE AVAILABLE!

CPU Intel®Amston Lake
RAM LPDDR5@4800MTs
LAN 1x 2.5 GbE
DIMENSIONS 70 x 70 mm

Specifications

CPU

  • Intel®Amston Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • Intel® Atom® x7000RE Series
    Intel® Atom® x7000C Series

Memory

  • LPDDR5@4800MTs
  • up to 16GB

Graphics & AI

  • UHD Intel
    OpenGL 4.6
    OpenCL 3.0
    Direct X 12.1
    IPU 6

Video Processing Unit Capabilities

  • HEVC/ H265, VP9, AV1 dec
    HEVC/H265 enc

Mass Storage

  • Starting from 4 GB soldered onboard

Networking

  • 1x 2.5 Gb Ethernet

USB

  • 4x USB2
  • 2x USB3

PCIe

  • 4

Audio

  • I2S i/f
    HDA

Peripheral Interfaces

  • UART
    I2C
    SPI
    CAN Bus
    SDIO
    2x SATA
    Watchdog Trigger
    LPC
    Thermal Control
    Fan Control

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 70 x 70 mm

Product availability

  • 2034
