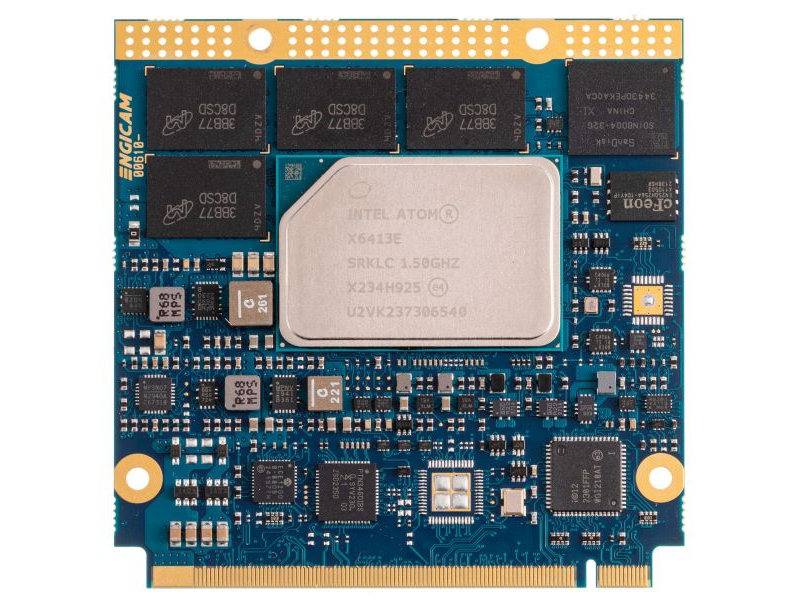

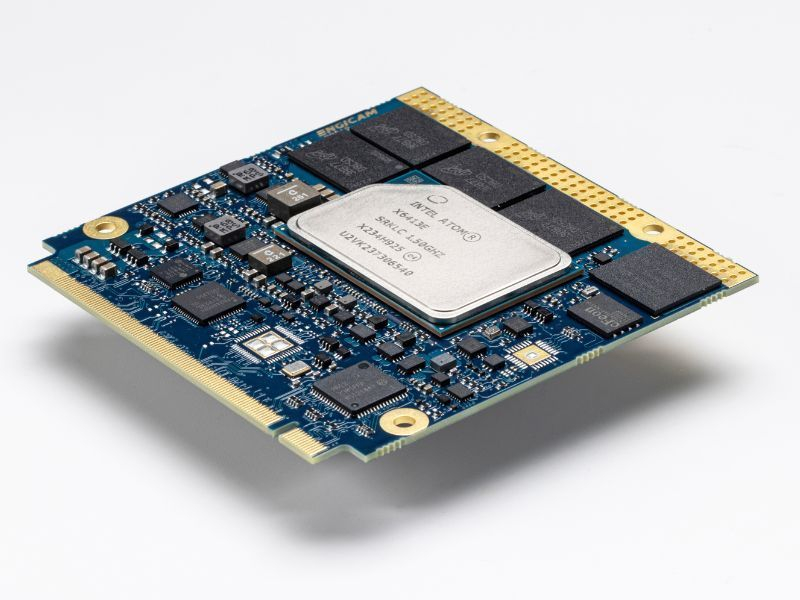

Qseven EHL

Developed on Qseven® standard, based on Intel® Elkhart Lake™ processor series,Qseven EHL is built on new levels of CPU with high-performance multimedia processing with integrated IoT features, for real-time applications, security and functional safety.

CPU Intel® Elkhart Lake
RAM LPDDR4@3733MTs
GRAPHICS 3D GPU
OPERATING TEMPERATURE -40° up to 85°

Specifications

CPU

  • Intel® Elkhart Lake
  • Manufacturer: Intel
  • VPU
  • GPU

Cores

  • x86
  • Up to 4

Memory

  • LPDDR4@3733MTs
  • 2GB up to 16GB

Graphics & AI

  • Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2

Video Processing Unit Capabilities

  • HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HEVC/H.265, H.264, VP9, JPEG/MJPEG enc

Mass Storage

  • eMMC, 2x SATA

Networking

  • 1x 1Gb Ethernet

USB

  • 8x USB2
  • 2x USB3

PCIe

  • 4

Audio

  • I2S i/f, HDA

Peripheral Interfaces

  • PCIe 3.0 , UART, I2C, SPI, CAN Bus, Watchdog Trigger, LPC, Thermal Control, Fan Control, SDIO

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 70 x 70 mm

Product availability

  • 2031
