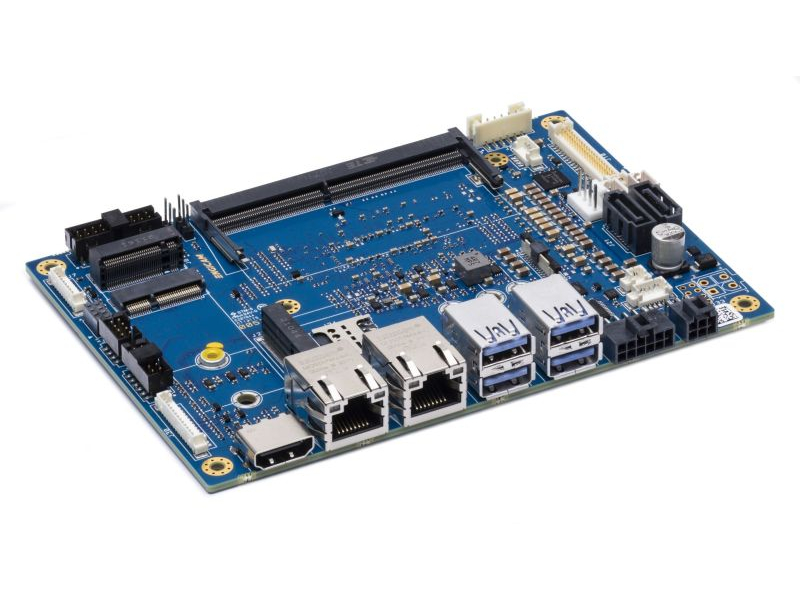

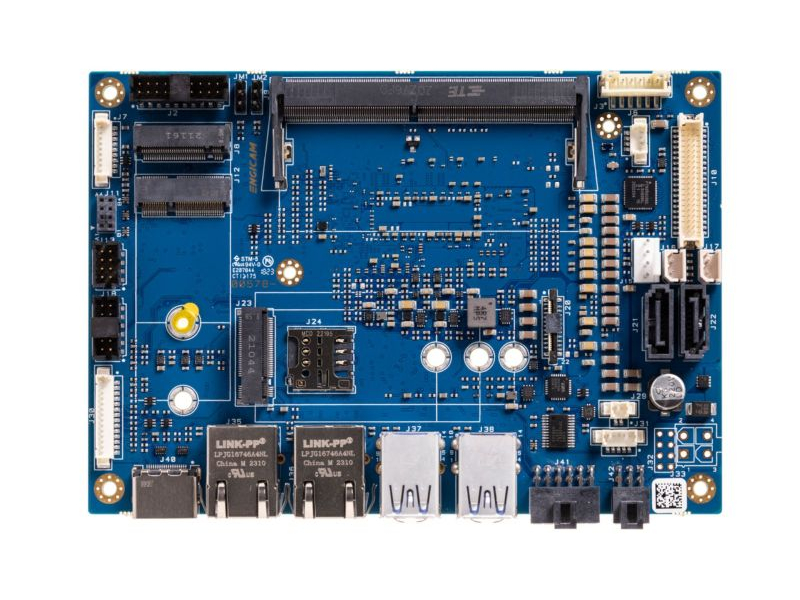

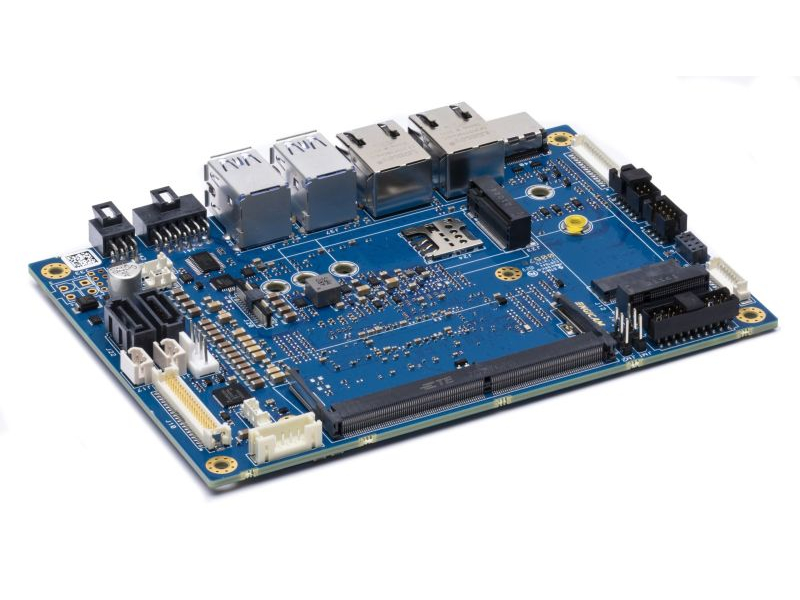

T.Board TGL

The T.Board TGL is a high-performance 3.5" Single Board Computer built on the Intel® Tiger Lake platform, with up to 32GB DDR4 memory, integrated Iris Xe graphics, and rich connectivity including dual Ethernet and four USB3 ports.

Rated for -40°C to 85°C, it's built for demanding industrial applications.

Specifications

CPU

  • Intel® Tiger Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86

Memory

  • DDR4@0MTs
  • up to 32GB

Graphics & AI

  • Integrated Iris Xe Graphics Core Gen12 architecture, with up to 96 Execution Units DirectX 12.1, OpenGL 4.6, OpenCL 2.0

Video Processing Unit Capabilities

  • HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60. AVC/H.264, HEVC/H.265, JPEG, VP9 HW encoding MPEG2, WMV9, AVC/H.264, JPEG/MJPEG

Mass Storage

  • 2x SATA slot
    1x SSD M.2 Key M slot
    1x SSD M.2 Key B slot

Networking

  • 2x 1Gb Ethernet

USB

  • 4x USB3

PCIe

  • NO

Audio

  • MIC, HP & Line

Peripheral Interfaces

  • 1 x I2C (1xSM BUS)
    1 x JTAG
    2 x RS232(1 x Debug/Console)
    1 x Port RS232 or RS485 programmable via Bios
    12 x GPIOs

Operating Temperature

  • -40° up to 85°

Dimensions

  • 146 x 102 mm (3.5" form factor)

Product availability

  • 2034

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

3D

Products to complete your design

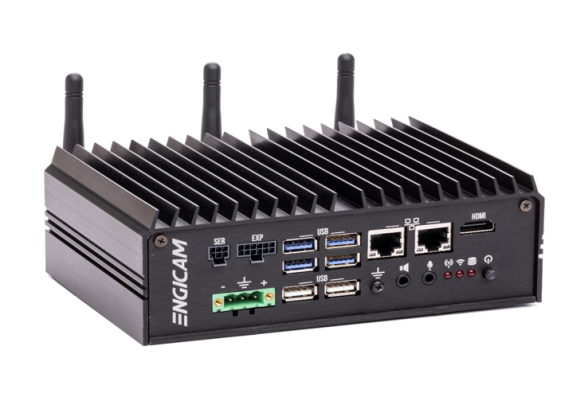

T.Box TGL
