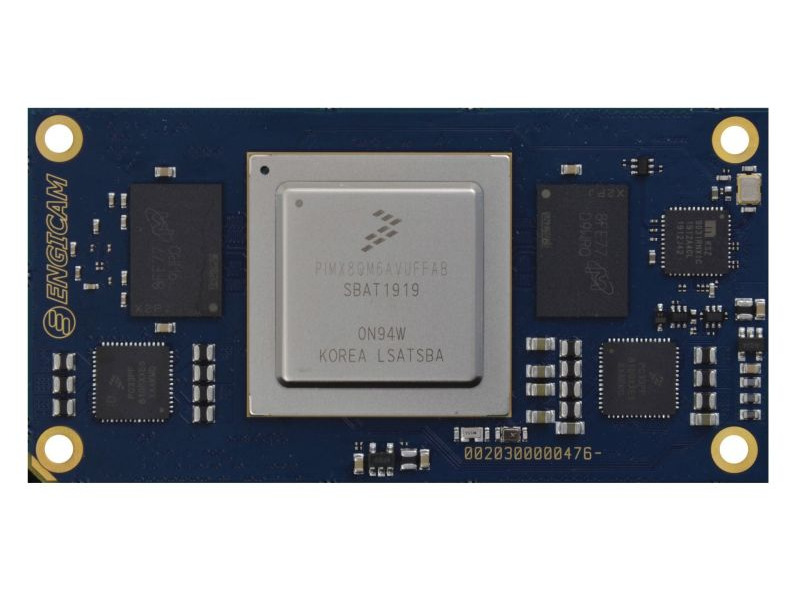

UltraGEA MX8QM

The new SOM is based on NXP® powerful i.MX 8QM processors equipped with the 4x Cortex-A53, plus up to2x Cortex-A72 plus up to 2x Cortex-M4F.

Specifications

Cores

Up to 2x ARM Cortex-A72@ 1.6 GHz, 4x Cortex-A53 @ 1.26 GHz, up to 2 CortexM4 @ 266MHz and 1x HIFI4 DSP

Graphics & AI

16 Vec4-Shader GPU, 32 compute units OpenGL® ES 3.2 and Vulkan® support Tessellation and Geometry Shading Split-GPU architecture enables 2x 8 Shader Cores Vision Extensions 4k h.265 Decode, 1080p h.264 encode

Video Processing Unit Capabilities

Single UltraHD 4Kp60 display or up to 4 independent FullHD 1080p60 displays

Mass Storage

4GB eMMC expandable

PCIe

NO

Audio

2x I2S interfaces

Peripheral Interfaces

I2C, SPI, UART, JTAG, SDIO interfaces

Operating System

Linux

Product availability

2020

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

UltraGEAMX8QM_flyer.pdf 810.94K

Hardware manual

UltraGEAMX8QM_HW_Manual_1.0.1.pdf 7.63M login required
