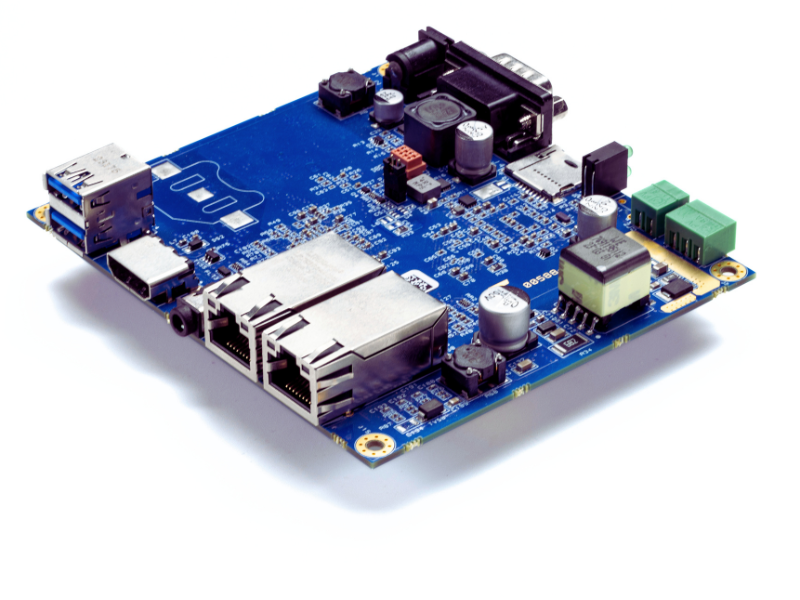

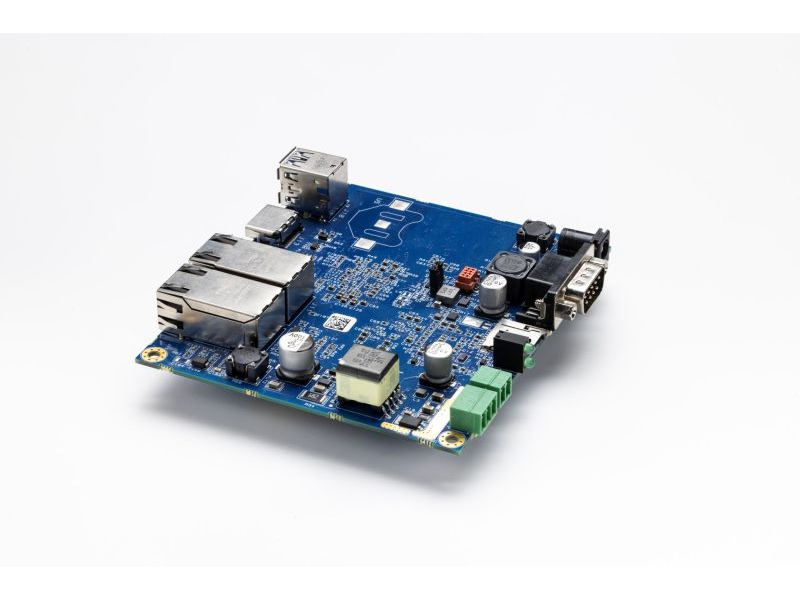

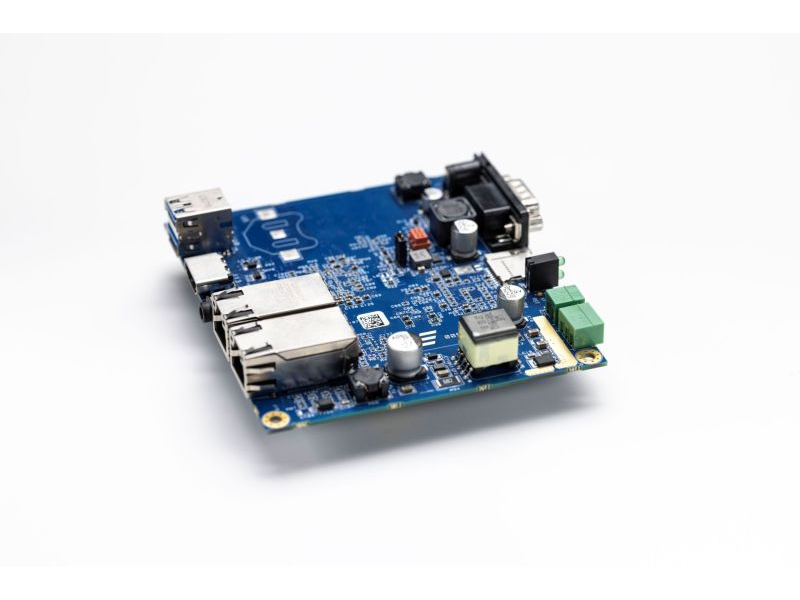

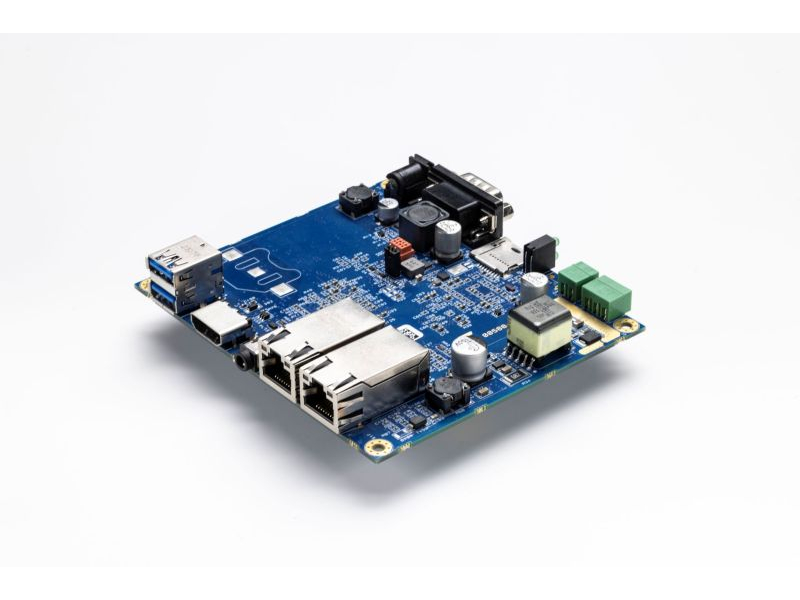

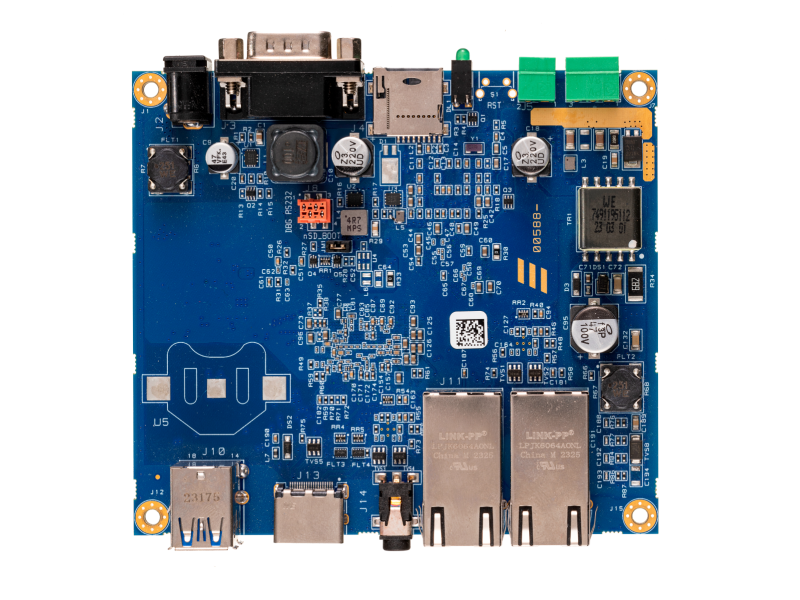

V.Board RK3568

The V.Board RK3568 is a compact Single Board Computer powered by the Rockchip® RK3568 quad-core processor, combining AI-ready performance, dual Ethernet, and extended temperature support in an industrial-grade platform.

Specifications

CPU

  • Rockchip® RK3568
  • Manufacturer: Rockchip
  • GPU

Cores

  • ARM
  • ARM Cortex-A55

Memory

  • LPDDR4@3200MTs
  • up to 8GB

Graphics & AI

  • 1 TOPS @INT8 NPU
    2D graphics, 3D graphics and General Purpose computing on GPU.
    The Mali-G52-2EE GPU supports these compute API standards:
    -OpenCL 2.0 Full Profile
    -OpenGL ES 1.1, 2.0, and 3.2
    -Vulkan 1.0 and 1.1.

Video Processing Unit Capabilities

  • HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60. AVC/H.264, HEVC/H.265 encoding

Mass Storage

  • eMMC drive soldered on-board

Networking

  • 2x 1Gb Ethernet

USB

  • 2x USB3

PCIe

  • NO

Audio

  • Build in I2S (on PMIC RK-809)

Peripheral Interfaces

  • 1x uSD card on SDIO Bus, 2x RS232 (1 x Linux Console), 1x Digital GPIO INPUT (up to 32V), 1x Driver Relay 12V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 113x100 mm

Product availability

  • 2034

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

3D

Products to complete your design

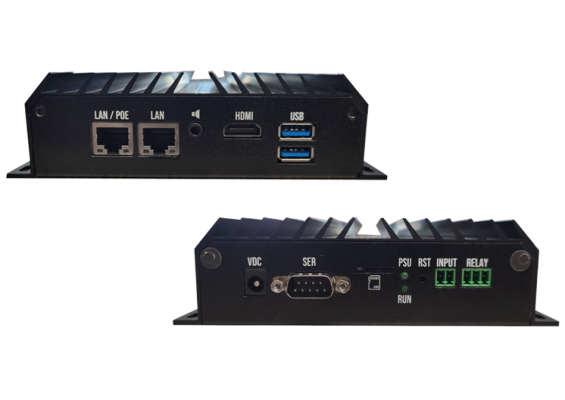

V.Box RK3568

Boxed PC based on Rockchip® ​​​​​​​RK3568 series processors.

View product
