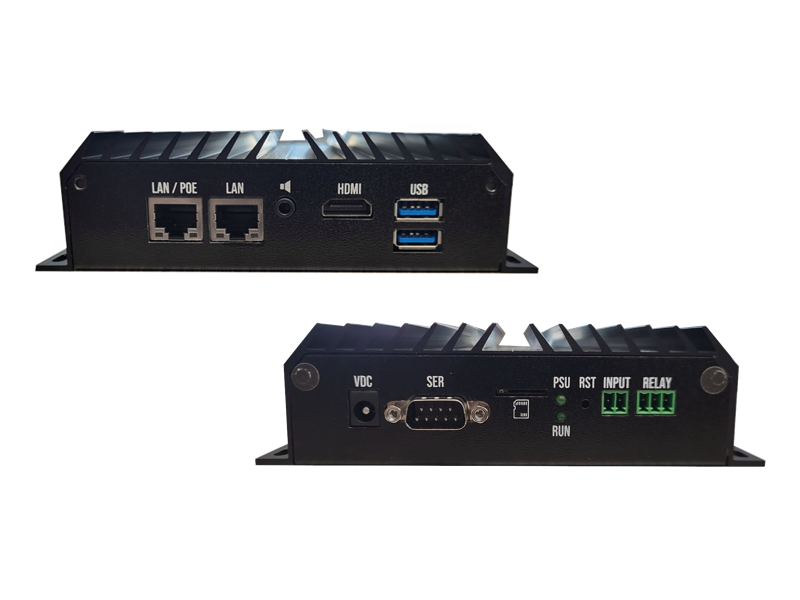

V.Box RK3568

The Boxed PC is based on Rockchip® RK3568 series processors.

Specifications

Features

CPU: Rockchip RK3568/RK3568J, Quad Core ARM Cortex A-55 @1.8 GHz
Memory: Up to 8 GB LPDDR4 / 3200 MTs
AI: 1.0 TOPS @ INT8 NPU
Graphics: 2D graphics, 3D graphics and General Purpose computing on GPU. The GPU supports these compute API standards: - OpenCL 2.0 Full Profile, - OpenGL ES 1.1, 2.0, and 3.2, - Vulkan 1.0 and 1.1
Video Interfaces: - HDMI up to 4K @60Hz - Optional eDP up to 4K@60Hz - LVDS Dual Channel up to Full HD @60Hz via eDP bridge
Video processing: - HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60Hz - AVC/H.264, HEVC/H.265
Audio: Build in I2S (on PMIC RK-809)
Networking: 2 x Gb Ethernet interfaces
Power supply: +17 to +26 VDC (on Jack connector) +36V to 57V input Voltage (on POE)
USB: 2 x USB HOST 3.0
Mass storage: eMMC soldered on board170408
Dimensions: 113 x 100 mm

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

V.BOX_Flyer.pdf 385.27K

Hardware manual

V.Box_USR_manual.pdf 1.26M login required

Products to complete your design

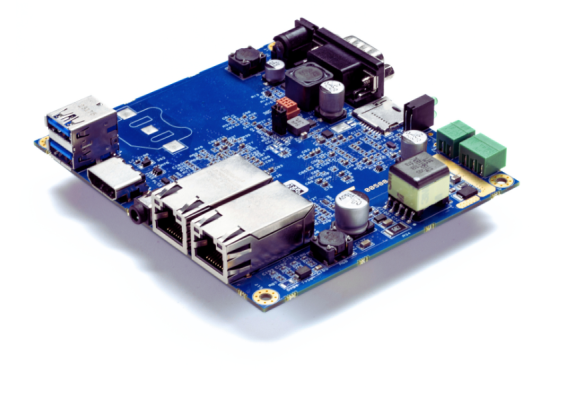

V.Board RK3568
