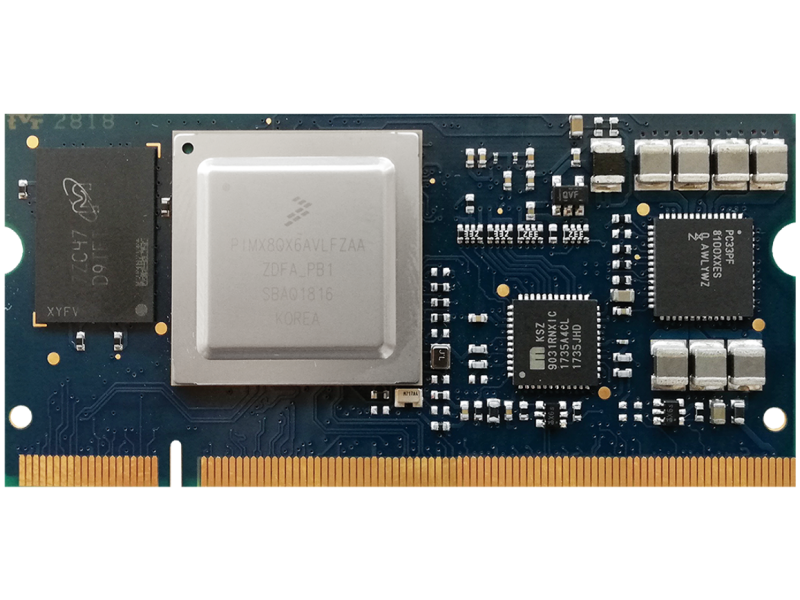

i.Core MX8X

i.Core MX8X based on NXP™ i.MX 8X series, ideal for safety-certifiable and efficient performance requirements.

CPU NXP® i.MX8X
INTEGRATED MCU Cortex-M4F@266MHz
RAM LPDDR4@2400MTs
GRAPHICS 3D GPU

Specifications

CPU

  • NXP® i.MX8X
  • Manufacturer: NXP
  • VPU
  • GPU

Cores

  • ARM
  • Up to 4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz

Memory

  • LPDDR4@2400MTs
  • 1GB up to 4GB

Graphics & AI

  • 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions

Video Processing Unit Capabilities

  • 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc

Mass Storage

  • 4GB eMMC expandible

Networking

  • 2x 1Gb Ethernet

USB

  • 1x OTG
  • 1x USB3

PCIe

  • 1
  • 1 x PCIe interface

Audio

  • 1 x I2S interface

Peripheral Interfaces

  • 1x UART (Up to 5)
    (Up to 4x I2C)
    2x CAN (Up to 3)
    ADC
    1x SDIO
    (Up to 4x SPI)
    JTAG interface
    Dual channels MIPI-CSI 4 lanes INPUT

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 67.6 x 32 mm

Product availability

  • 2035

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Software manual

Errata

Fact Sheet

Hardware manual

PCN

BSP

3D
