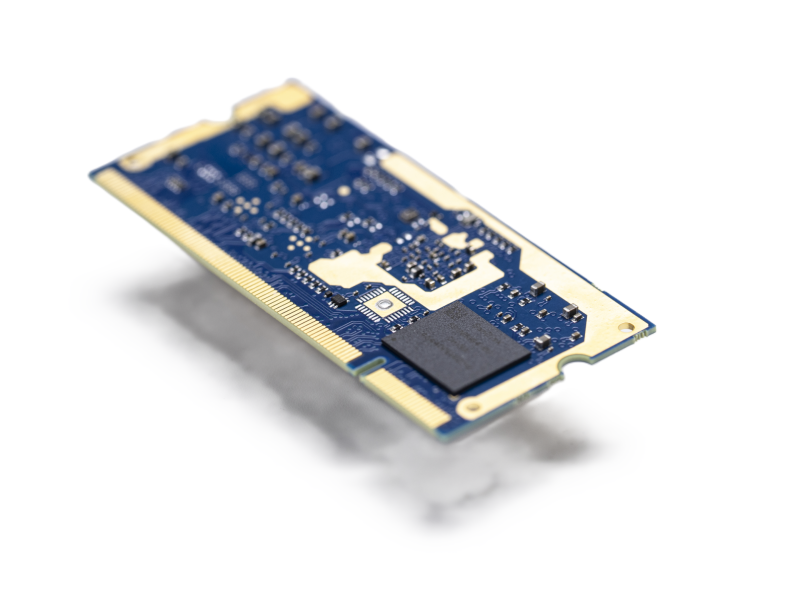

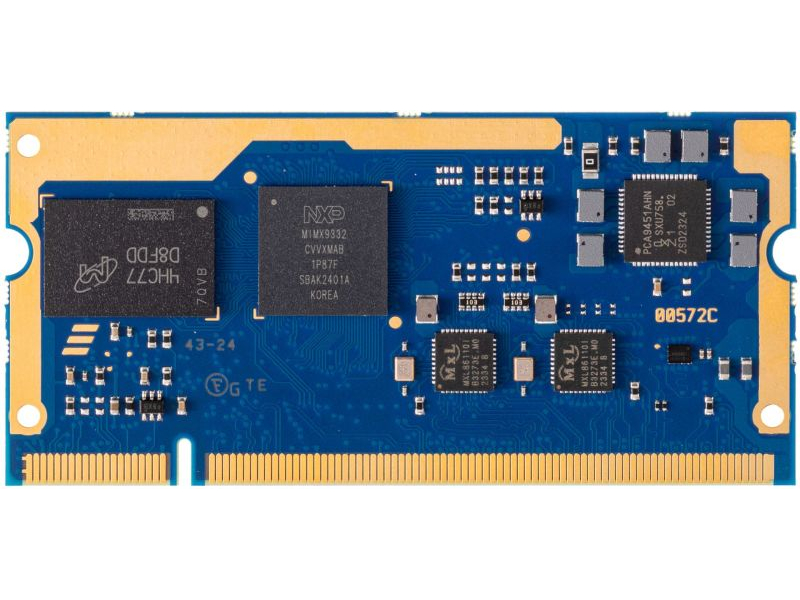

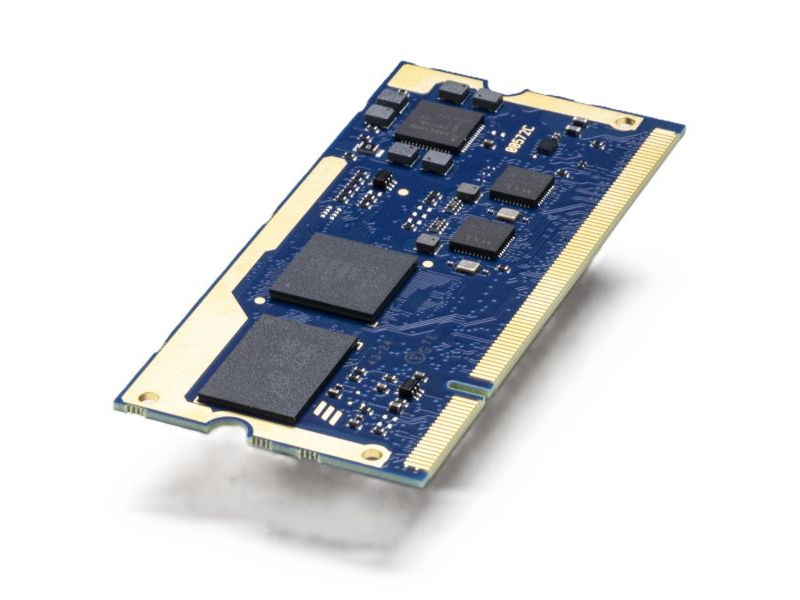

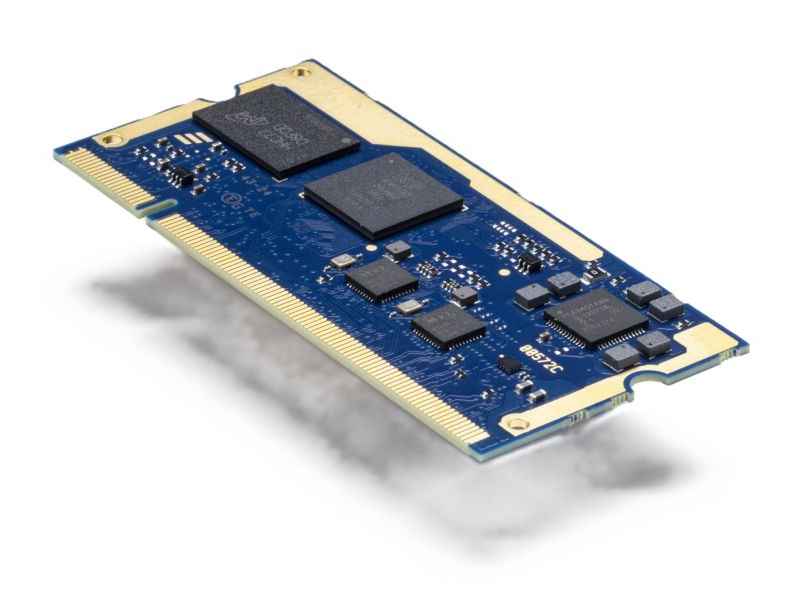

i.Core MX93



i.Core MX93  is a SOM based on the NXPs i.MX93 processor, equipped with Arm Cortex®-A55 @ up to 1.7 GHz processor with dedicated NPU.
This energy-efficient SOM is developed on EDIMM 2.0 versatile pinout and is suitable for machine learning, IoT, industrial, and automotive devices.
i.Core MX93 includes industrial features and temperature, a comprehensive set of peripherals, connectivity options such as 2x USB 2.0, and several display outputs.

CPU NXP® i.MX 93
RAM LPDDR4X@3700MTs
AI CAPABILITIES Arm® Ethos™ U-65 microNPU
DIMENSIONS 67.6 x 32 mm

Specifications

CPU

  • NXP® i.MX 93
  • Manufacturer: NXP
  • NPU

Cores

  • ARM
  • Up to Dual Arm® Cortex®-A55 @ 1.7 GHz with Arm® Ethos™ U-65 microNPU and Arm Cortex-M33 @ 250MHz

Memory

  • LPDDR4X@3700MTs
  • 1GB up to 2GB

Graphics & AI

  • Arm® Ethos™ U-65 microNPU
    Hardware Compositor for Blending/Composition, Resize, Color Space Conversion

Mass Storage

  • Starting from 4 GB soldered on-board

Networking

  • 2x 1Gb Ethernet

USB

  • 2x USB2

PCIe

  • NO

Audio

  • I2S Interface

Peripheral Interfaces

  • 4x UART (Up to 6)
    2x I2C (Up to 8)
    1x SPI (Up to 6)
    JTAG
    2x CAN
    2x SDIO
    GPIOs
    RGMII option

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 67.6 x 32 mm

Product availability

  • 2038

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

BSP

3D
