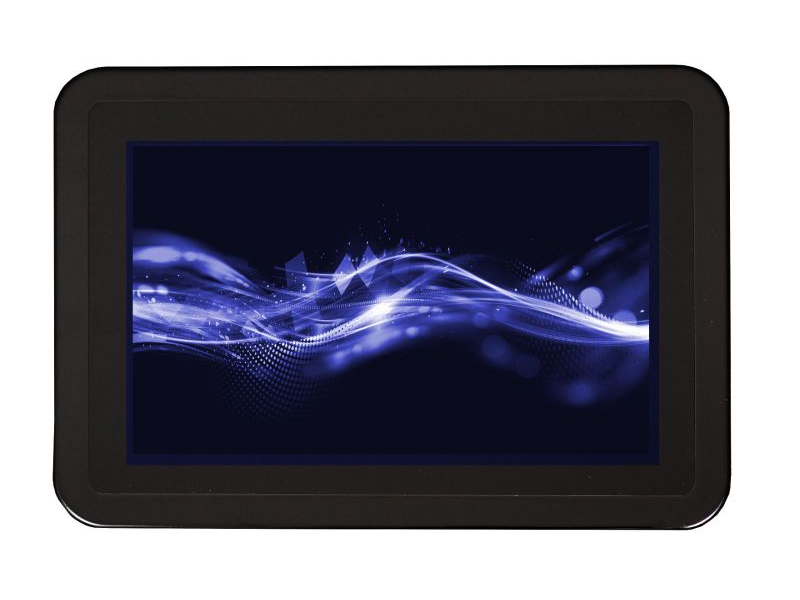

i.Touch EDIMM 7"

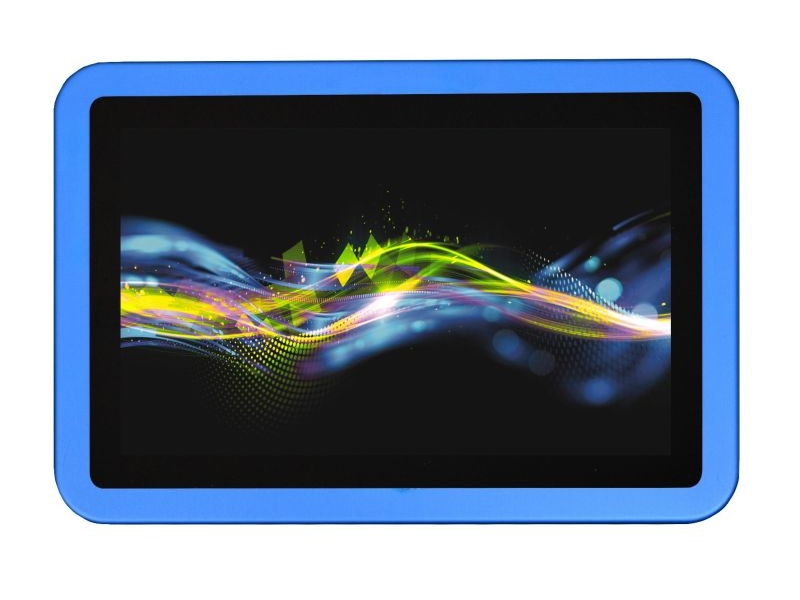

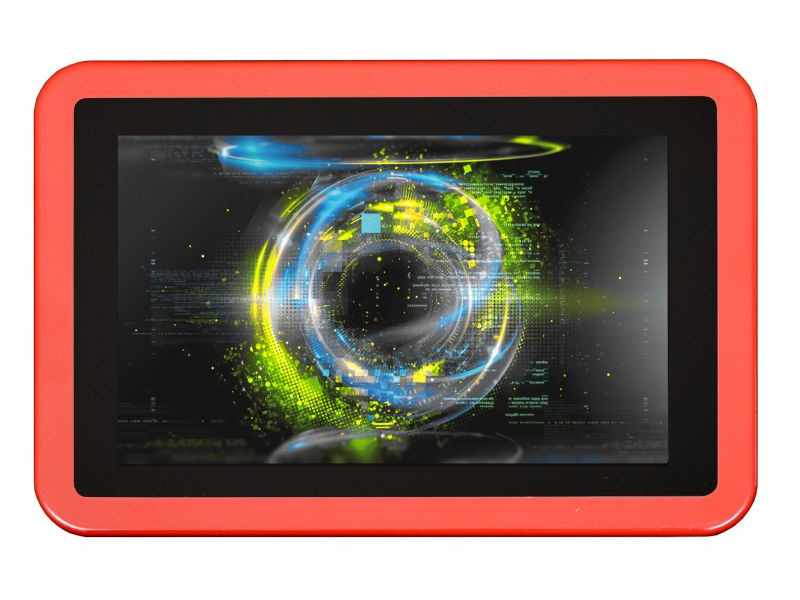

Based on the DIMM2.0 SOM series, this open frame provides a capacitive multi-touch panel and an array of connectivity interfaces. The Engicam Linux SDK allows a ready-to-use way to develop a user-friendly graphic user interface. The touch panel system is also straightforward to integrate into the final housing due to frames in different colors.

Specifications

Operating System

Linux

Development Systems

Yocto

Features

TFT 7" 1024x600 resolution
DIMM 2.0 CPU modules compliant
Brightness 460 cd/mq
Industrial temperature range
Wide 15 to 30 Vdc single power supply
1x Ethernet 10/100
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x USB OTG device
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
1x General purpose LCD connector: 1x 18 or 24 bit single-channel LVDS, 1x USB, 1 x I2C for CTP i/f, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
1x LCD connector to drive dual-channel displays (Option)

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

i.TOUCH_EDIMM_7_Flyer.pdf 205.28K

Hardware manual

Openframe_i.Touch_EDIMM_7_USR_Manual_1.0.2.pdf 4.36M login required

PCN

PCN_2108-02.pdf 127.08K login required
PCN_2206-02.pdf 875.59K login required

Products to complete your design

GEA STM32MP13

EDIMM SOM based on the latest STM32MP135

View product

i.Core AM62x

Based on the TI® AM62 processor for industrial and automotive applications

View product

i.Core MX8M Mini

EDIMM SOM based on NXP® i.MX 8M Mini

View product

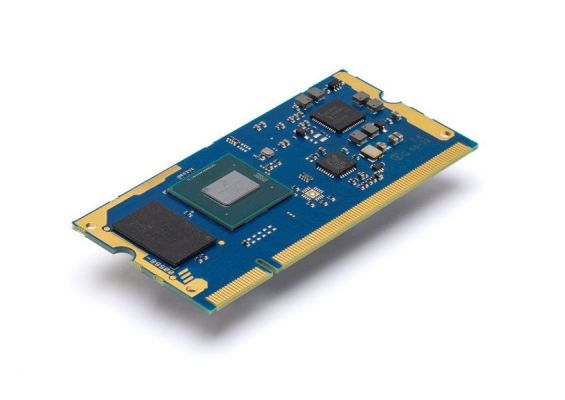

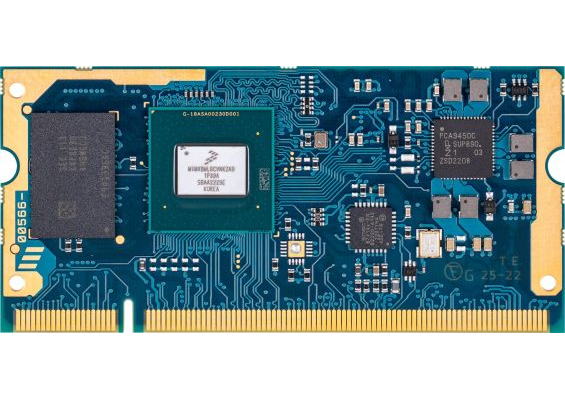

i.Core MX8M Plus Family

EDIMM SOM based on NXP® i.MX 8M Plus

View product

i.Core MX8X

EDIMM SOM based on NXP® i.MX 8X

View product

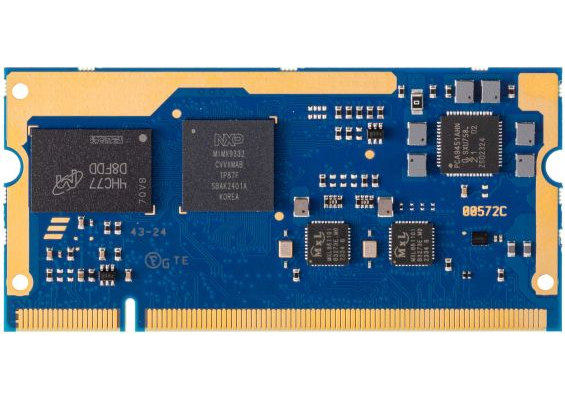

i.Core MX93

Based on the i.MX93 processor

View product

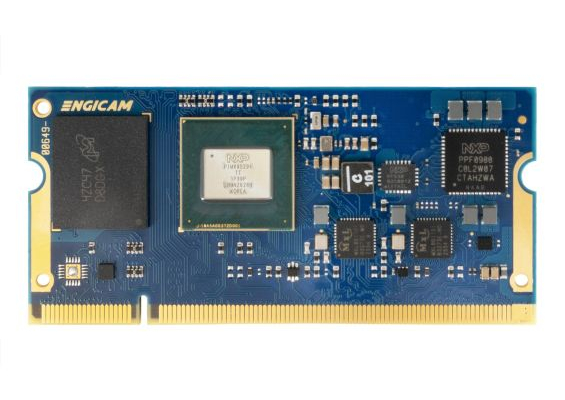

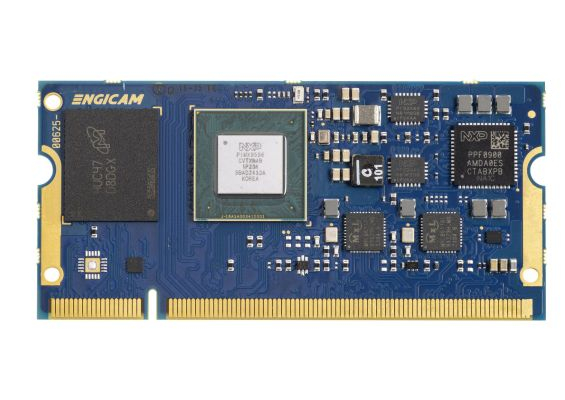

i.Core MX95

EDIMM SOM based on i.Core MX95 - Sample available

View product

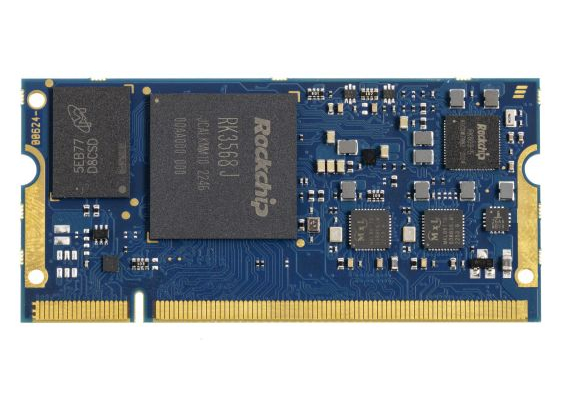

i.Core RK3568

EDIMM SOM based on Rockchip® RK3568 series

View product

i.Core RZ/G2E

EDIMM SOM based on Renesas® RZ/G2E

View product

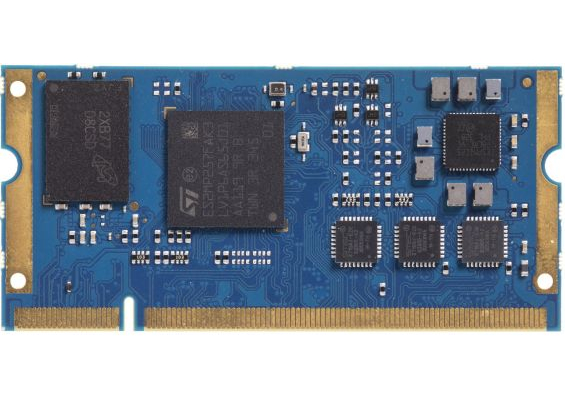

i.Core STM32MP2

EDIMM SOM based on the STM32MP2x processor

View product

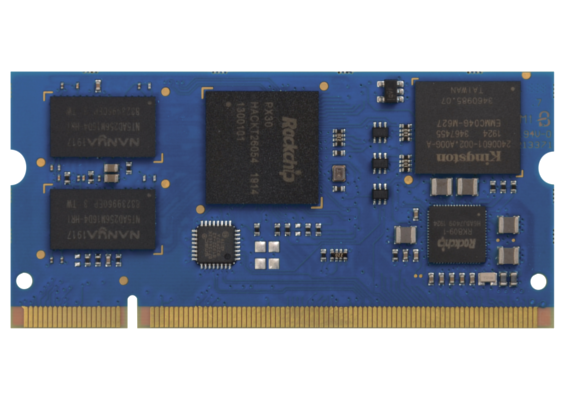

PX30.Core
