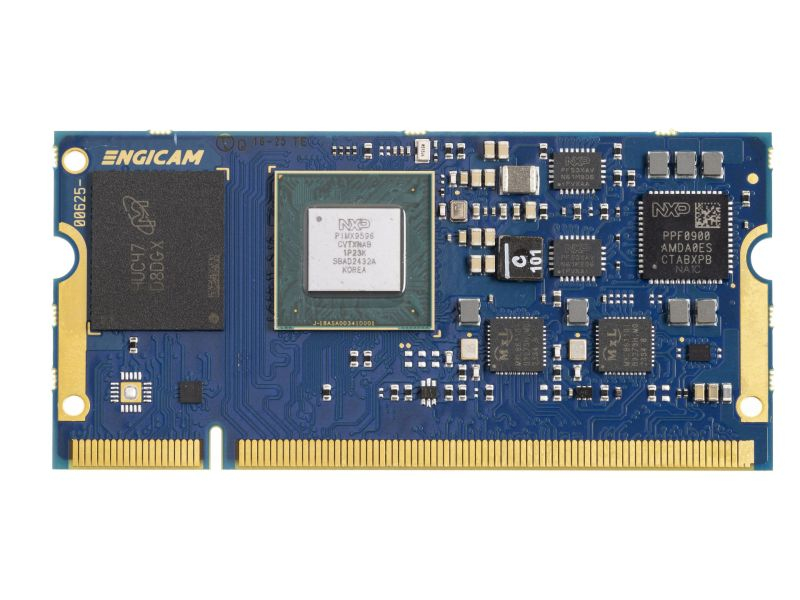

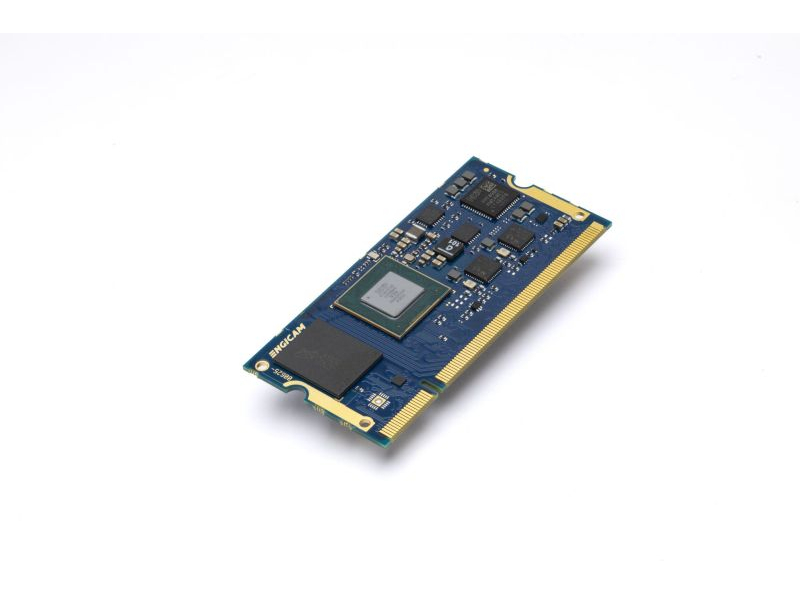

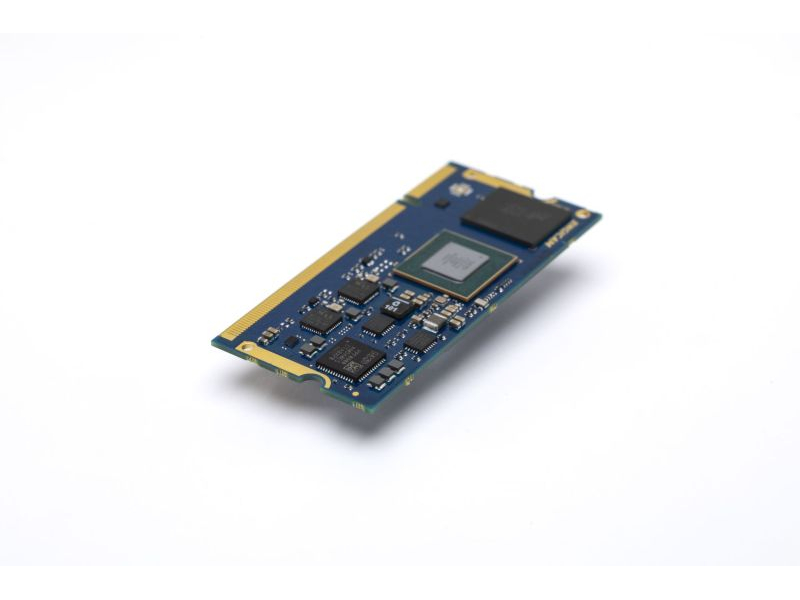

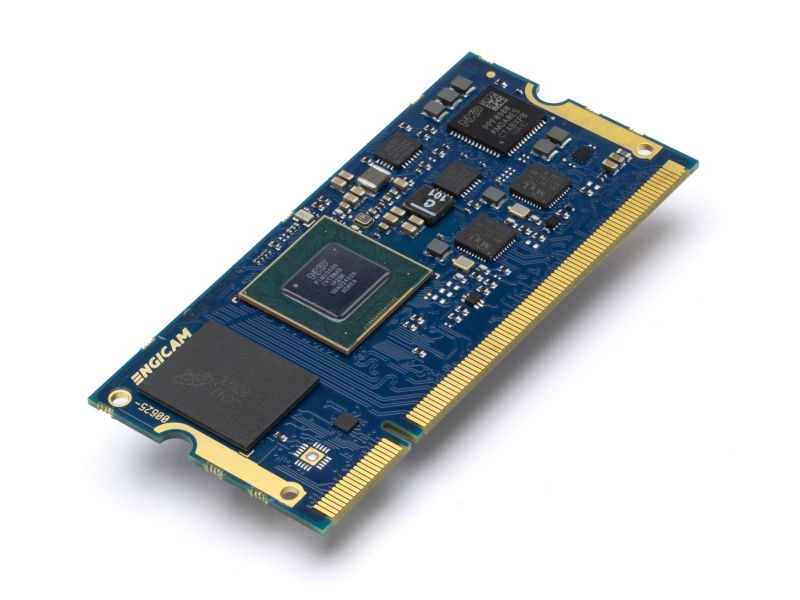

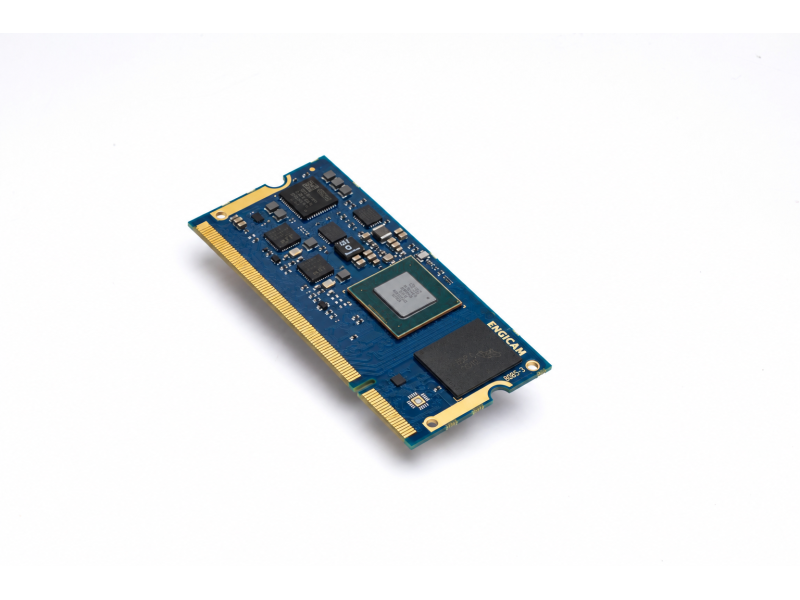

i.Core MX95

The new Engicam module for a wide range of edge applications from Automotive connectivity to Industry 4.0 and IoT platforms, is based on EDIMM 2.0 standard. i.Core MX95 is based on NXP® i.MX95 processor with 2.0 TOPS NPU, 3D GPU  for advanced graphics, powerful vision and machine learning, real-time processing and security applications.



CPU NXP® i.MX95
RAM LPDDR5@4200MTs
INTEGRATED MCU 1x Arm Cortex-M7, 1x Arm Cortex-M33
AI CAPABILITIES 2.0 TOPS NPU

Specifications

CPU

  • NXP® i.MX95
  • Manufacturer: NXP
  • NPU
  • VPU
  • GPU

Cores

  • ARM
  • Up to 6x Arm Cortex-A55
    1x Arm Cortex-M7
    1x Arm Cortex-M33

Memory

  • LPDDR5@4200MTs
  • up to 16GB

Graphics & AI

  • NXP eIQ® Neutron 2.0 TOPS NPU
    Arm Mali-G310 3D GPU supporting 50 GFLOPs FP32.
    OpenGL ® ES 3.2
    Vulkan ® 1.3
    OpenCL 3.0

Video Processing Unit Capabilities

  • 4Kp60 H.265/H.264 decode and encode, 1x JPEG Encoder, 1x JPEG Decoder

Mass Storage

  • Starting from 4 GB eMMC soldered onboard

Networking

  • 2x 1Gb Ethernet

USB

  • 1x USB2
  • 1x USB3

PCIe

  • 1
  • PCIe interface Gen3/1-lane

Audio

  • I2S interface, SAI Interface (up to 2)

Peripheral Interfaces

  • 4x UART (Up to 8)
    2x I2C (Up to 6)
    2x SPI (Up to 7)
    JTAG
    2x CAN (Up to 5)
    2x SDIO
    GPIOs
    MIPI DSI/CSI - 4 lane
    1x RGMII option

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 67.6 x 32 mm

Product availability

  • 2039

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

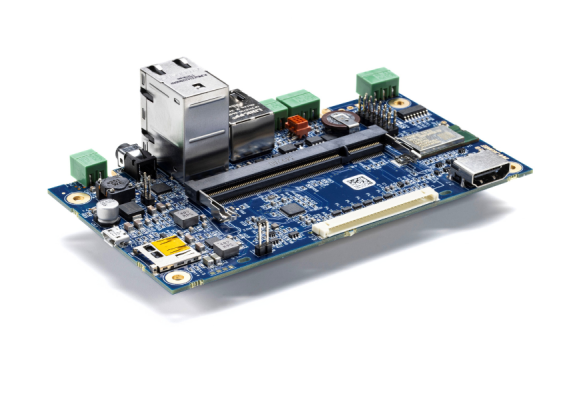

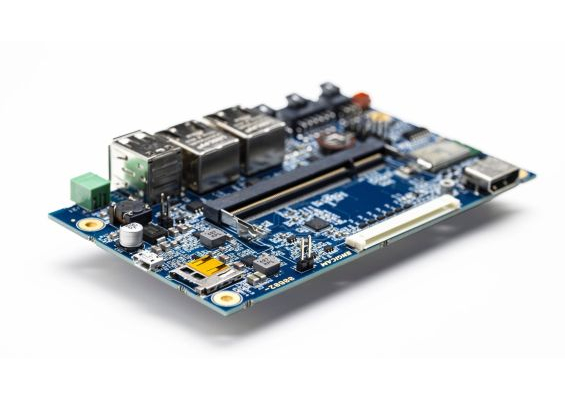

C.Touch 3.0

General purpose carrier board with capacitive touch interface, EDIMM 2.0 compliant

View product

C.Touch 3.1

General purpose carrier board with capacitive touch interface, EDIMM 2.0 compliant.

View product

Products to complete your design

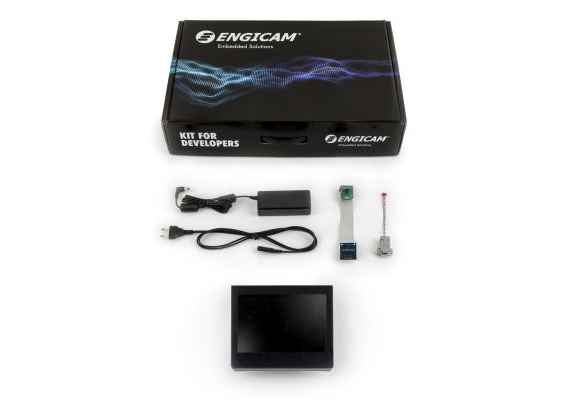

EDIMM 2.0 Starter Kit

EDIMM 2.0 Form Factor Capacitive Evaluation Board

View product

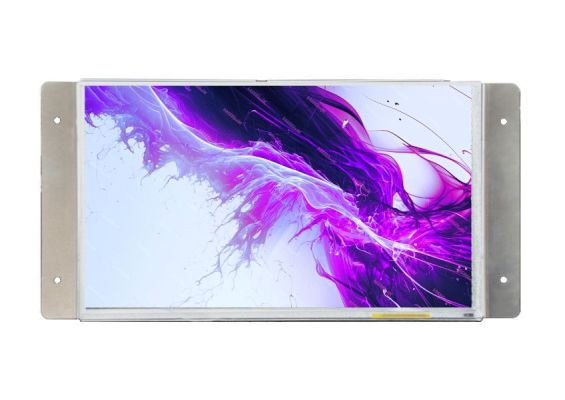

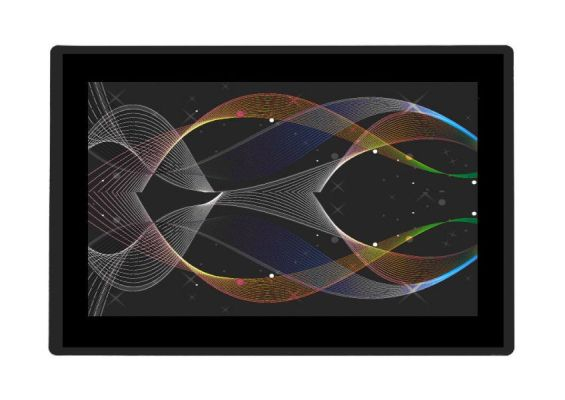

C.Touch 10.1" GEN 3

Capacitive touch 10.1" open frame standard EDIMM 2.0 with powerful communication peripherals.

View product

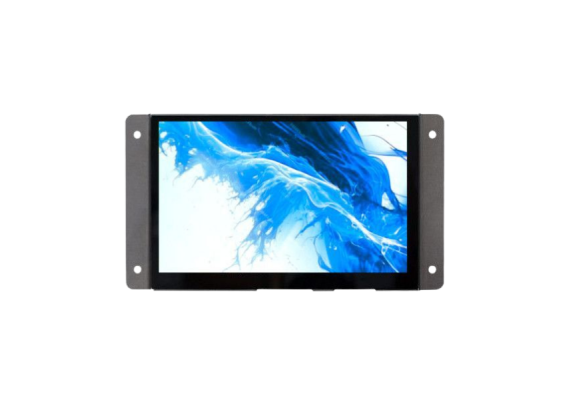

C.Touch 7" GEN 3

Capacitive touch 7" open frame standard EDIMM 2.0 with powerful communication peripherals.

View product

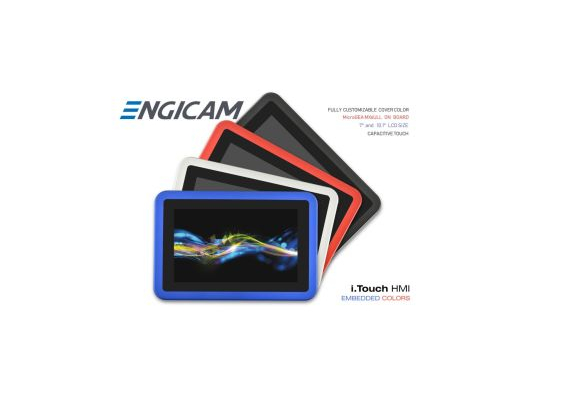

i.Touch EDIMM 7"

Capacitive touch 7" open frame standard EDIMM 2.0, with available different colour covers

View product

K.Touch 10.1 EDIMM

Capacitive touch 10.1 display + frame based on standard EDIMM2.0, front mount.

View product

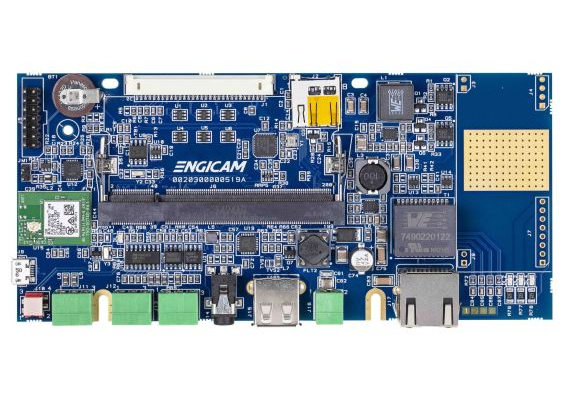

C.Touch PoE
