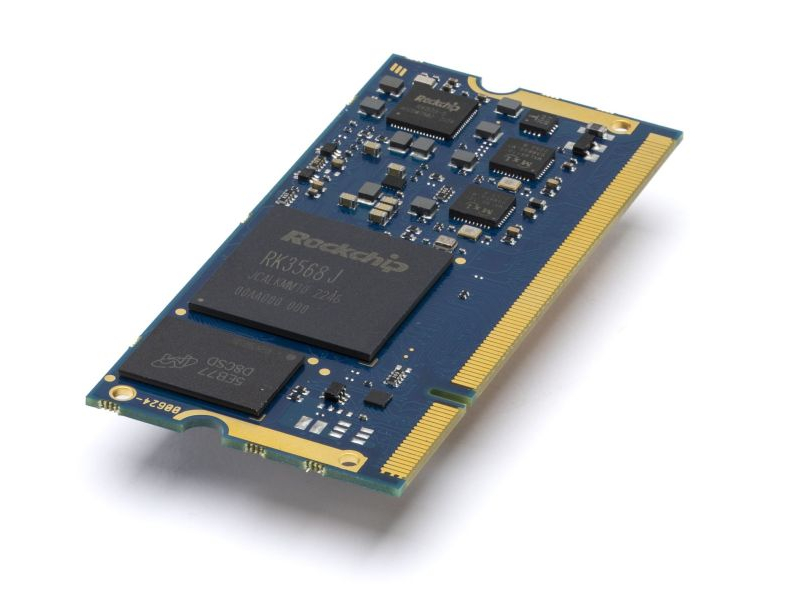

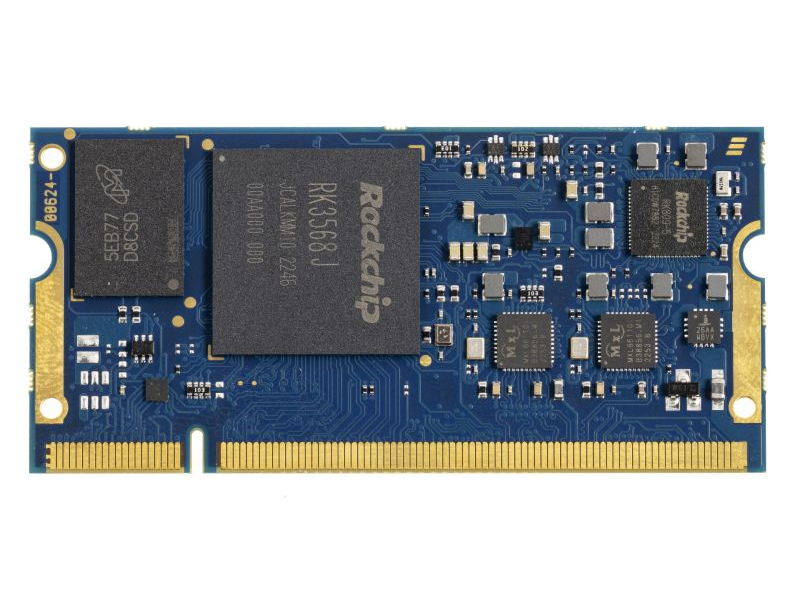

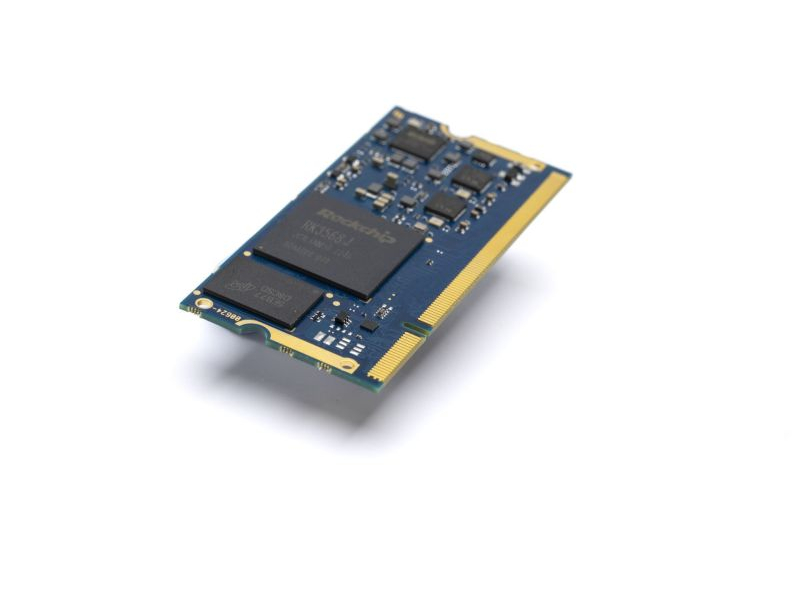

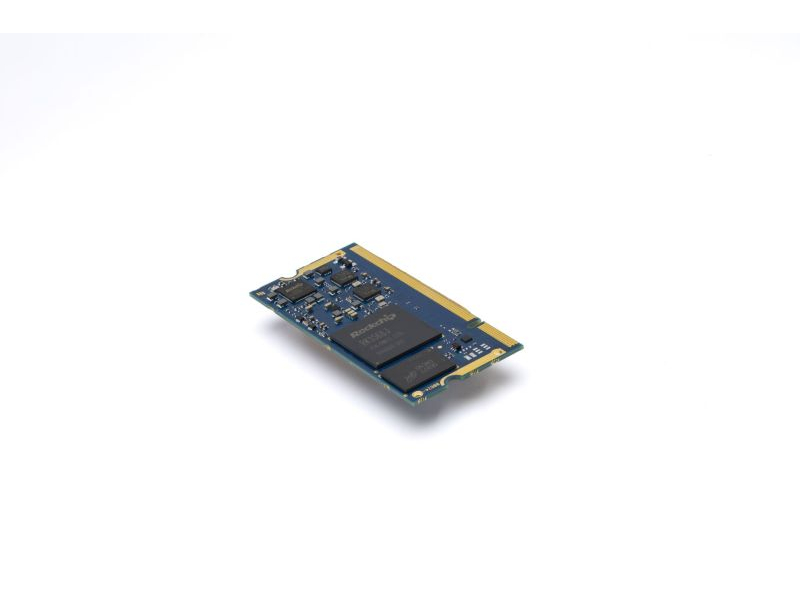

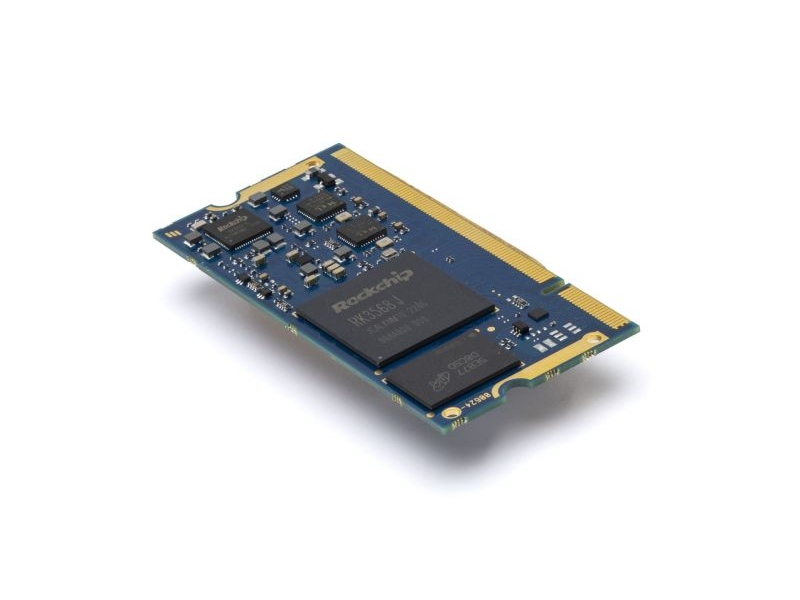

i.Core RK3568

New Engicam module based on Rockchip® RK3568 series, for machine learning and IoT, powerful graphics, connectivity and industrial applications, with up to 1 TOPS NPU, GPU and a wide set of peripherals.

CPU Rockchip® RK3568
RAM LPDDR4@3200MTs
AI CAPABILITIES 1 TOPS @INT8 NPU
VIDEO INTERFACES HDMI TX, MIPI DSI, MIPI DSI/LVDS, MIPI CSI

Specifications

CPU

  • Rockchip® RK3568
  • Manufacturer: Rockchip
  • NPU
  • GPU

Cores

  • ARM
  • 4x Arm®Cortex®-A55

Memory

  • LPDDR4@3200MTs
  • up to 8GB

Graphics & AI

  • 1 TOPS @INT8 NPU
    2D graphics, 3D graphics and General Purpose computing on GPU.
    The Mali-G52-2EE GPU supports these compute API standards:
    -OpenCL 2.0 Full Profile
    -OpenGL ES 1.1, 2.0, and 3.2
    -Vulkan 1.0 and 1.1.

Video Processing Unit Capabilities

  • HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60
    AVC/H.264, HEVC/H.265 encoding

Mass Storage

  • Starting from 4GB eMMC soldered onboard

Networking

  • 2x 1Gb Ethernet

USB

  • 1x OTG
  • 1x USB2

PCIe

  • 1
  • PCIe interface Gen2.1/1-lane

Audio

  • Build in I2S (on PMIC RK809)

Peripheral Interfaces

  • 4x UART (Up to 8)
    2x I2C (Up to 5)
    1x SPI (Up to 2)
    2x CAN (Up to 3)
    2 x I2S (Up to 3)
    2x SDIO
    GPIOs
    MIPI-CSI – 4 lane
    RGMII option

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 67.6 x 32 mm

Product availability

  • 2034
