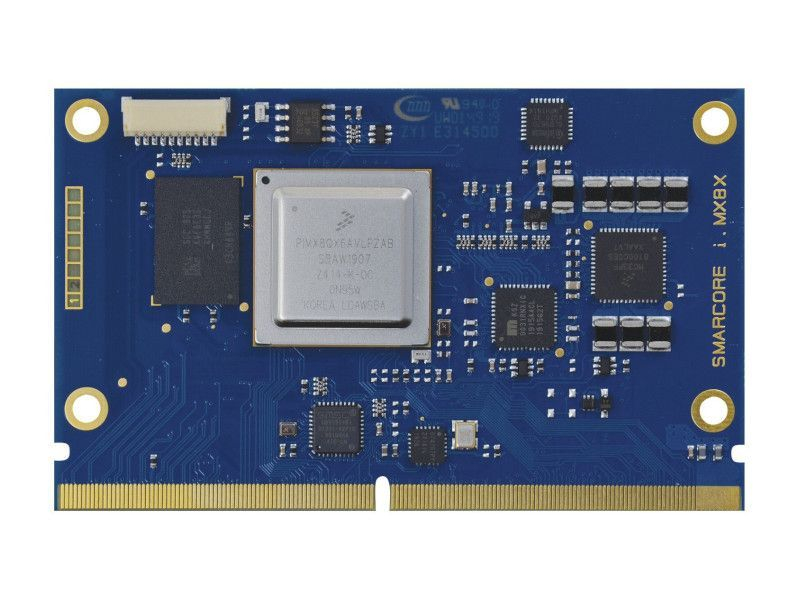

SmarCore MX8X

SmarCore MX8X SOM is based on Powerful NXP® iMX8X processors and designed to be compliant with the Smarc standard pinout.

Specifications

CPU

  • NXP® i.MX8X
  • Manufacturer: NXP
  • VPU
  • GPU

Cores

  • ARM
  • Up to 4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz
  • 2, 4 cores

Memory

  • LPDDR4@2400MTs
  • 2GB up to 4GB

Graphics & AI

  • 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions

Video Interfaces

  • DSI, LVDS

Video Processing Unit Capabilities

  • 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc

Mass Storage

  • 4GB eMMC expandible to 32 GB
  • EMMC

Networking

  • 2x 1Gb Ethernet

USB

  • 1x OTG
  • 1x USB2
  • 1x USB3

PCIe

  • 1
  • PCIe 3.0 1 lane

Audio

  • I2S interface

Peripheral Interfaces

  • UART I2C 3xCAN/CAN FD SDIO SPI GPIO ADC TPM 2.0 option available

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2035

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Software manual

PCN

Errata

Hardware manual

Fact Sheet

BSP

3D

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

Multimedia 4K SMARC Carrier Board

General purpose carrier board Compliant with SMARC standard

View product

X.Touch 2.0

General purpose carrier board Compliant with standard SMARC Interface

View product

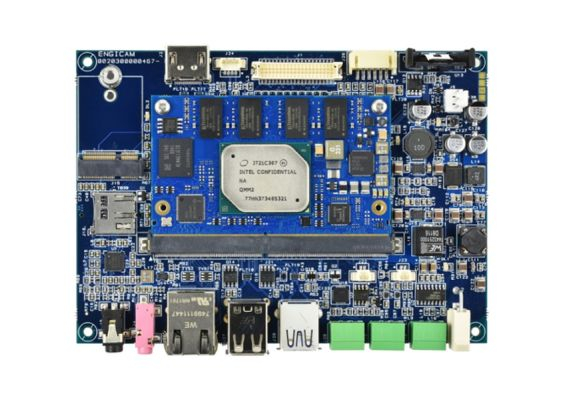

X.Touch Carrier Board

General purpose carrier board Compliant with standard SMARC Interface

View product

Products to complete your design

SMARC Multimedia 4K Starter Kit

SMARC Form Factor Evaluation Board

View product

SmarCore EVABOARD

SmarCore Form Factor Capacitive Evaluation Board

View product

X.Touch 10.1" Ampire

X.TOUCH 10.1” AMPIRE Open Frame

View product
