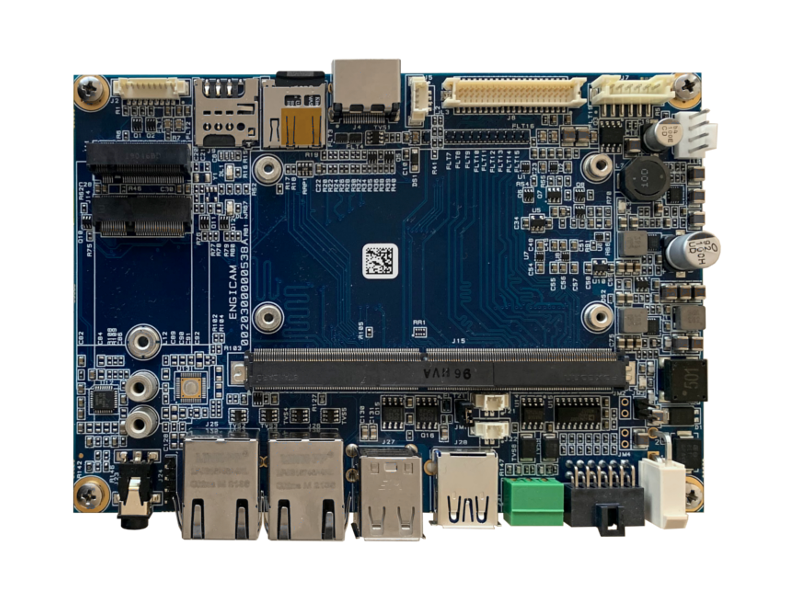

General-purpose Carrier Board compliant with Engicam standard SmarCore SOMs and Open Frames. Based on the X.TOUCH Carrier Board, this new model increases the number of external peripherals, such as CAN Bus and double Gb Ethernet. It enables the use of the WWAN interface. The Carrier Board 2.0 can host both ARM and X86 modules such as SmarCore MX8M Plus, SmarCore MX8X, SmarCore EHL.
SmarCore MX8M Plus, MX8X, and EHL-x86 family compliant
Industrial temperature range
15-30 Vdc single power supply
1 x HDMI interface up to 4K
1 x LVDS interface up to FULL HD
1 x HP Output Jack
2 x Gb Ethernet
1 x USB3.0
2 x USB2.0
1 x microSD
1 x RS485
2 x RS232
I2C
2xCAN
4x GPIOs
JTAG i/f
WiFi M.2 KEY E
WWAN or SSD M.2 KEY B
Size: 100 x 142 mm
SIM holder for M2 socket module
