C.Touch 2.0

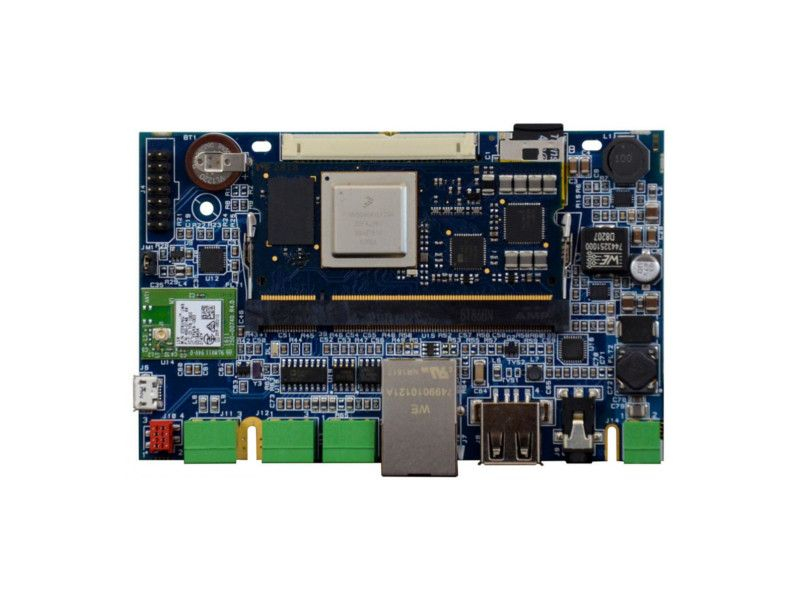

C.TOUCH 2.0 is an EDIMM 2.0-compliant, general-purpose carrier board with a capacitive touch interface, designed for evaluation and development with any EDIMM 2.0 system-on-module.

It combines an industrial temperature range and a wide 15–30 Vdc power supply with rich connectivity, plus flexible LCD support for single- or dual-channel LVDS displays.

Specifications

Features

EDIMM 2.0 CPU modules compliant
Industrial temperature range
Wide 15 to 30 Vdc single power supply
1x Ethernet 10/100
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x USB OTG device
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
1x General purpose LCD connector: 1x 18 or 24 bit single channel LVDS, 1x USB, 1 x I2C for CTP i/f, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
1x LCD connector to drive dual channel displays (Option)
Size: 115 x 72 mm

Documentation & Software

Access technical documents, software, and support resources.

Accessories

Peripherals_wiring_map.png 512.83K

Fact Sheet

C.TOUCH2.0_Carrier_Board_Flyer.pdf 255.70K

Hardware manual

C.TOUCH_2.0_USR_Manual_1.1.2.pdf 2.80M login required

PCN

PCN_2108-02.pdf 127.08K login required
PCN_2108-04.pdf 668.30K login required
PCN_2210-01.pdf 74.20K login required
PCN_2602-2_C.TOUCH_2.0.pdf 127.04K login required

3D

This content is available for authorized users only. login required
