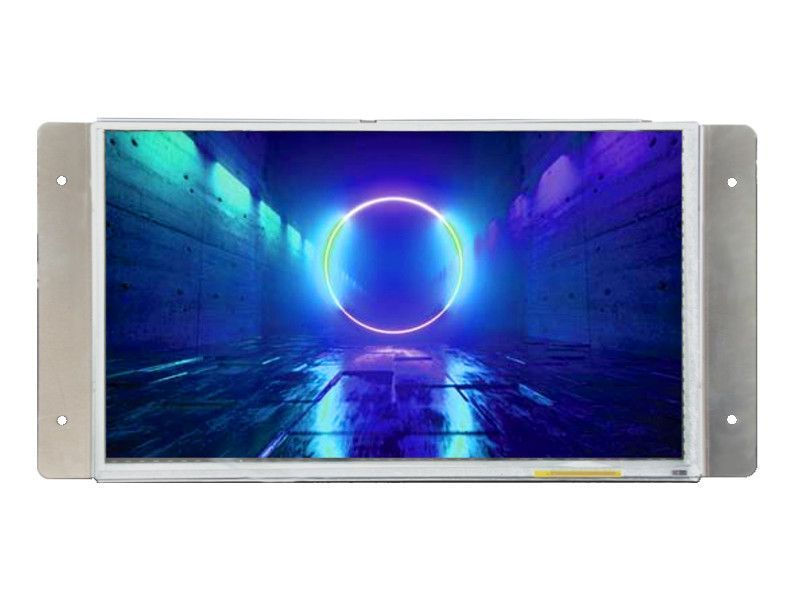

C.Touch IoT 10.1"

The C.Touch IoT 10.1" is an EDIMM 2.0-compliant open frame display featuring a 10.1" industrial TFT panel at 1280x800 resolution with capacitive multi-touch.

With WiFi+BT, CAN bus, RS485/RS232, and a USB OTG interface, it provides a flexible display platform for IoT and industrial applications.

Specifications

Features

  • EDIMM 2.0 CPU modules compliant
  • TFT 10.1" industrial, 1280x800 resolution
  • LED backlight, brightness 295 Cd/m2
  • 1x Ethernet 10/100
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x USB OTG device
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
  • 1x LCD connector to drive dual-channel displays (Option)



Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

PCN

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

C.Touch 2.0

General purpose carrier board with capacitive touch interface, EDIMM 2.0 compliant.
