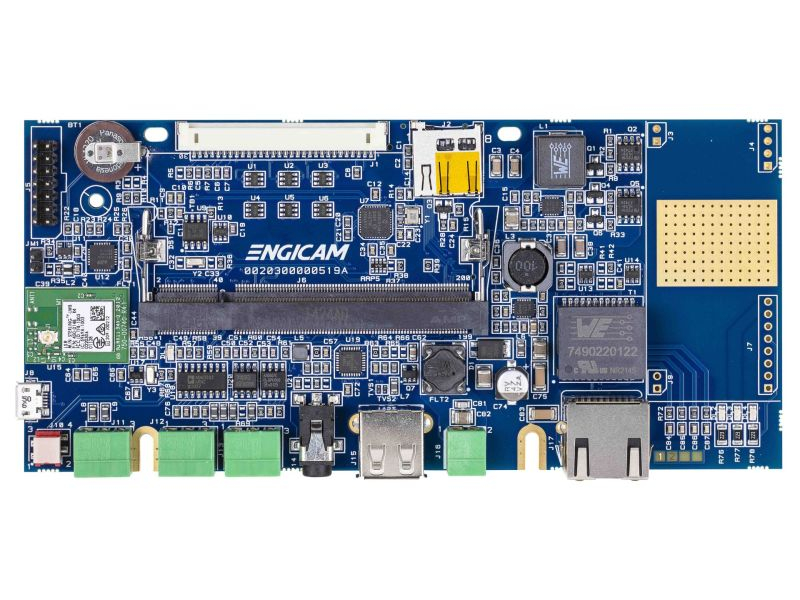

C.Touch PoE

General-purpose carrier board, compliant with our Standard EDIMM/EDIMM2.0. Based on
C.Touch Carrier board, this model includes PoE module to supply power to network devices via data connection.

Specifications

Features

EDIMM 2.0 CPU modules compliant
Industrial temperature range
Wide 15 to 30 Vdc single power supply
1x Ethernet 10/100
WiFi + BT
1x microSD
1x audio output
1x USB Type A
1x USB OTG device
1x CAN bus
1x RS485
1x RS232
1x RS232 for OS Console
1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
1x General purpose LCD connector: 1x 18 or 24 bit single channel LVDS, 1x USB, 1 x I2C for CTP i/f, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
1x LCD connector to drive dual ch
Size: 155.50 x 72.00 mm

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

C.Touch_PoE_Carrier_Board_Flyer.pdf 786.70K

Hardware manual

CTouchPoE.PSU_USR_Manual_1.0.0.pdf 3.22M login required
