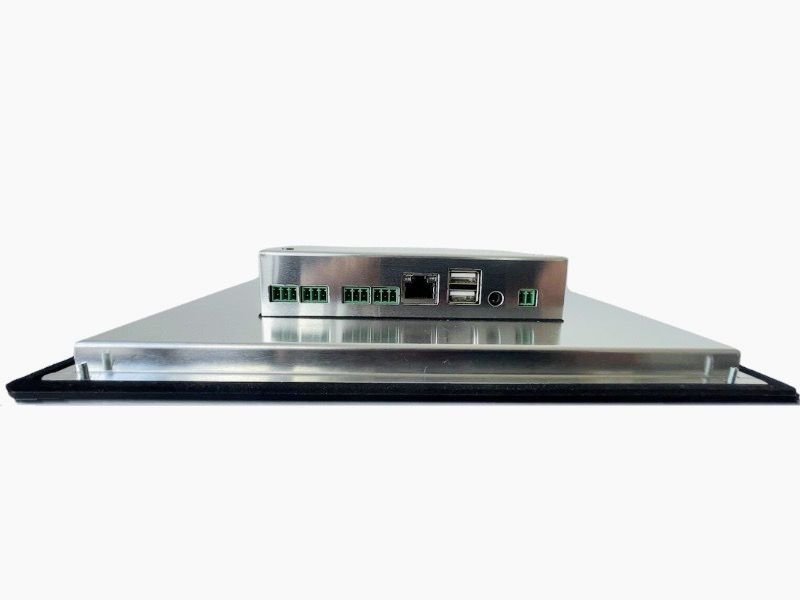

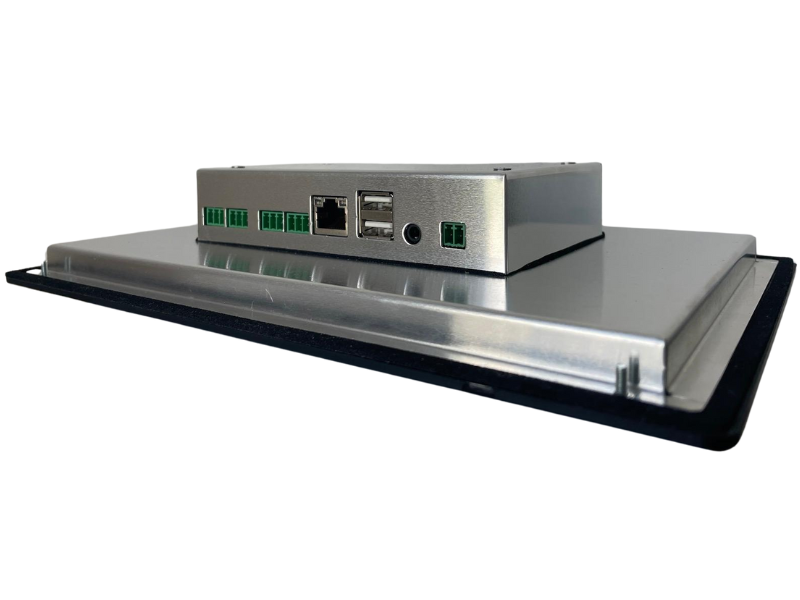

K.Touch 10.1 EDIMM

The K.Touch 10.1 EDIMM is a front-mount HMI panel featuring a 10.1" capacitive multi-touch display at 1280x800 resolution, EDIMM 2.0 compliant for compatibility with Engicam's SOM range.

With dual Gigabit Ethernet, WiFi+BT, CAN bus, and a wide 15–30 Vdc power supply, it's a ready-to-integrate display solution for industrial HMI applications.

Specifications

Features

EDIMM 2.0 CPU modules compliant
TFT 10.1 "
Capacitive multi-touch display 1280x800 resolution
Wide 15 to 30 Vdc single power supply
Brightness 600 cd/mq
up to 2x Ethernet 10/100/1000
WiFi + BT
1x microSD
1x audio output
2x USB Type A
1x USB OTG device (Micro USB type)
1x CAN bus
1x RS485
1x RS232 ( or alternative second CAN bus)
1x RS232 for OS Console
1x expansion connector (I2C, GPIOs, USB, SPI, Power supply +3,3V and 5V)
1x HDMI Standard Interface ( not supported on all SOMs)
General purpose LCD connector: 1x 18 or 24 bit single channel LVDS, Capacitive touch panel via USB or I2C, 1x PWM for backlight control, Power supply for LCD (+3V3, +5V, 12V)
1x LCD connector to drive dual LVDS channel displays

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

K.Touch_flyer.pdf 159.84K

Hardware manual

Openframe_K.Touch_USR_Manual_1.0.1.pdf 1.92M login required

3D

This content is available for authorized users only. login required

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

C.Touch 3.1

General purpose carrier board with capacitive touch interface, EDIMM 2.0 compliant.

View product

Products to complete your design

i.Core AM62x

Based on the TI® AM62 processor for industrial and automotive applications

View product

i.Core MX8M Mini

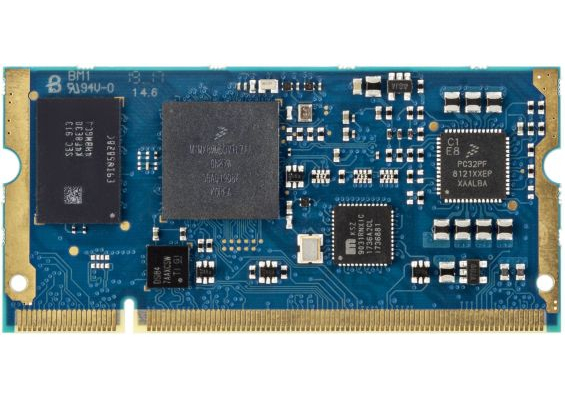

EDIMM SOM based on NXP® i.MX 8M Mini
