SmarCore EHL

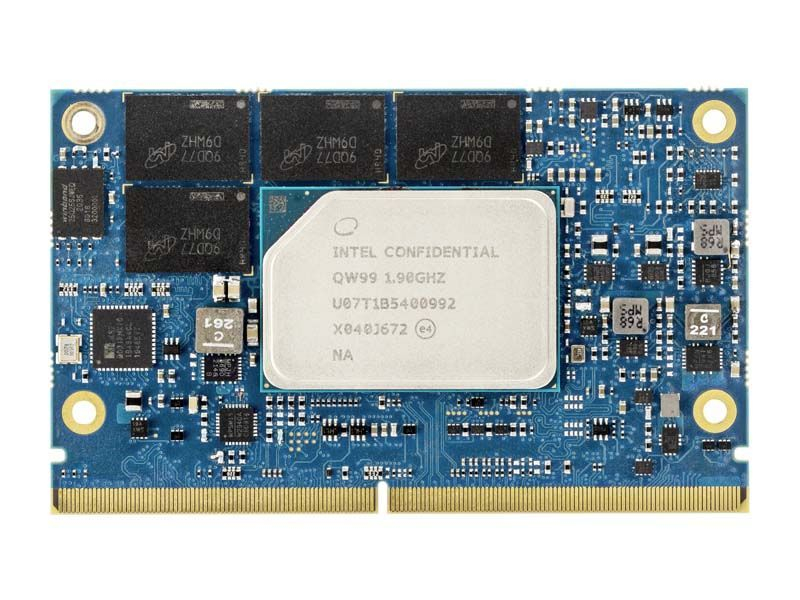

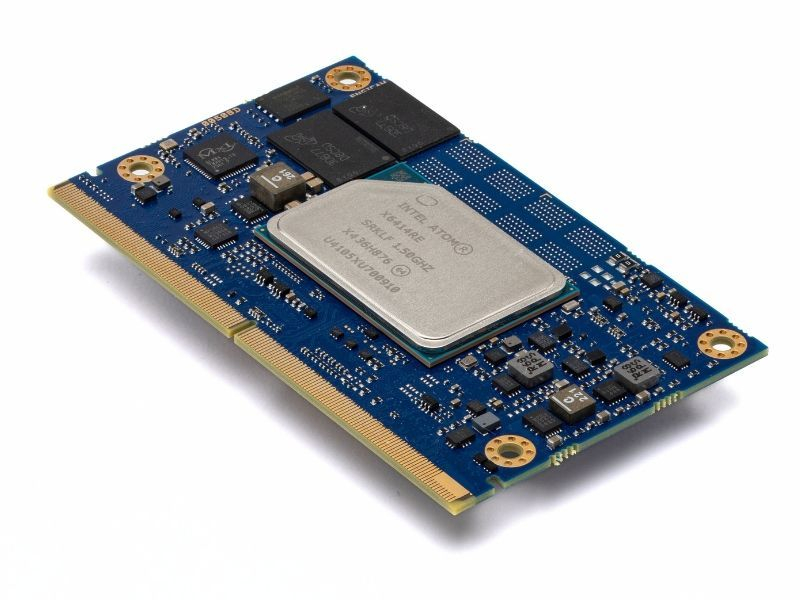

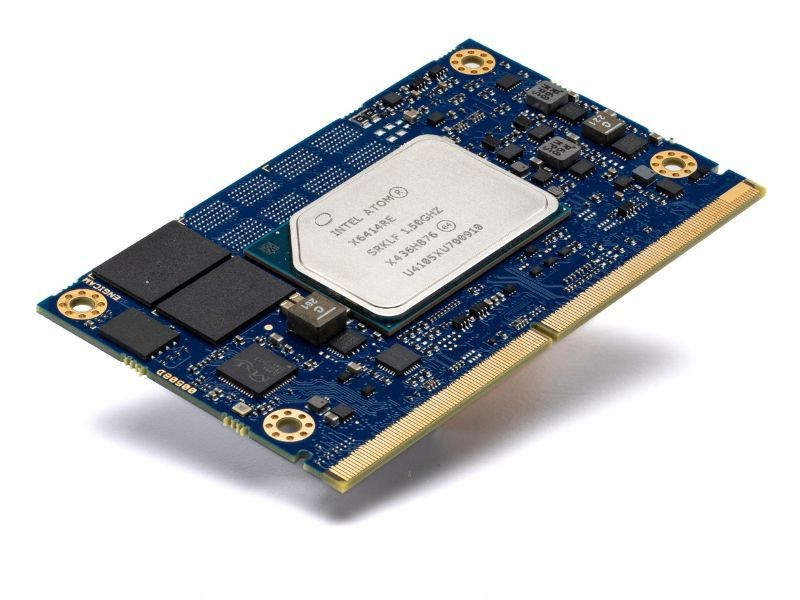

This Engicam’s SMARC standard module is based on Intel® processors ELKHART LAKE series ATOM® x6000E.

The module is built on new levels of CPU and graphics performance and it integrates IoT features, real-time performance, manageability, security, and functional safety.

CPU Intel® Elkhart Lake

RAM LPDDR4@3733MTs

DIMENSIONS Standard SMARC short size

Specifications

CPU

Intel® Elkhart Lake
Manufacturer: Intel
VPU
GPU

Cores

x86
Up to 4 up to 1.9GHz, L2 cache 1.5MB

Memory

LPDDR4@3733MTs
2MB up to 16GB

Graphics & AI

Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2, Vulkan 1.0 APIs, Dedicated FIVR for Graphics, Intel® Virtualization Technology for Directed I/O (VT-d)

Video Processing Unit Capabilities

HW accelerated encode HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HW accelerated encode HEVC/H.265, H.264, VP9, JPEG/MJPEG enc

Mass Storage

Starting from 4GB eMMC drive soldered on-board

Networking

2x 1Gb Ethernet

USB

1x OTG
3x USB2
2x USB3

PCIe

4
PCIe interface Gen3/up to 4-lane

Audio

I2S Interface, HDA

Peripheral Interfaces

UART, I2C, PCIe 3.0, SPI, JTAG, CAN, SDIO, GPIO

Power Supply

single 5V

Operating Temperature

-40° up to 85°

Dimensions

82 x 50 mm

Product availability

2031

Technical Media

Interactive view and technical overview of the product.

Documentation & Software

Access technical documents, software, and support resources.

PCN

PCN_21101.pdf 50.17K login required
PCN_2301-1.pdf 89.37K login required
PCN_2404-1.pdf 113.76K login required
PCN_2602-1.pdf 116.22K login required
PCN_2606-1.pdf 134.17K login required

Fact Sheet

SmarCore_EHL_Flyer.pdf 387.31K

Hardware manual

SmarCore_EHL_Hw_manual_1.1.5.pdf 1.67M login required

3D

This content is available for authorized users only. login required
