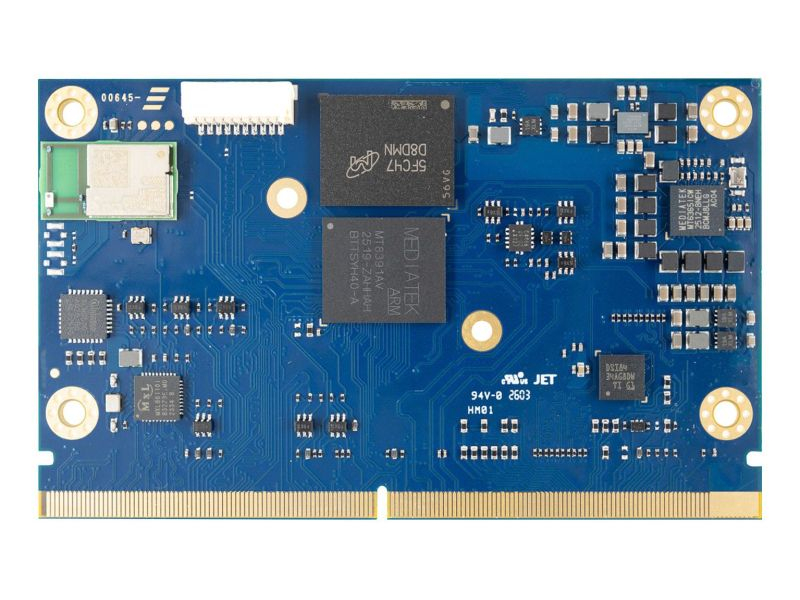

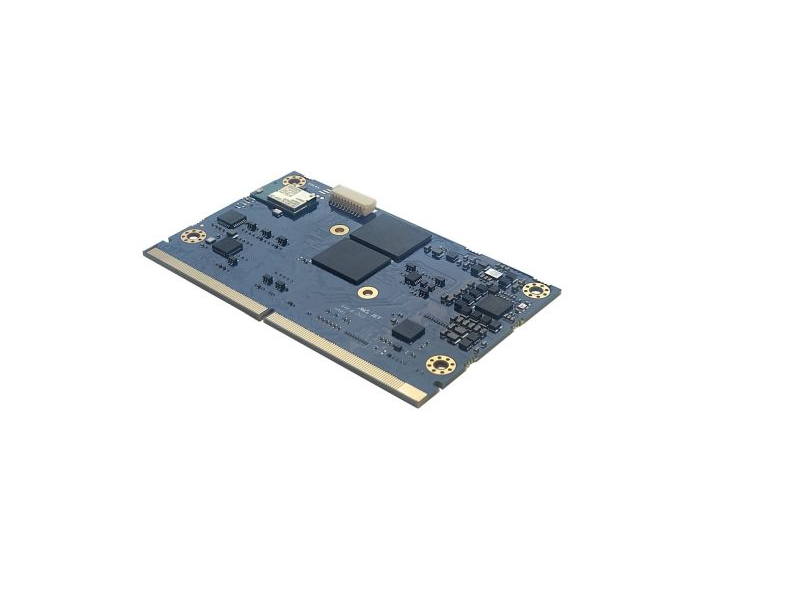

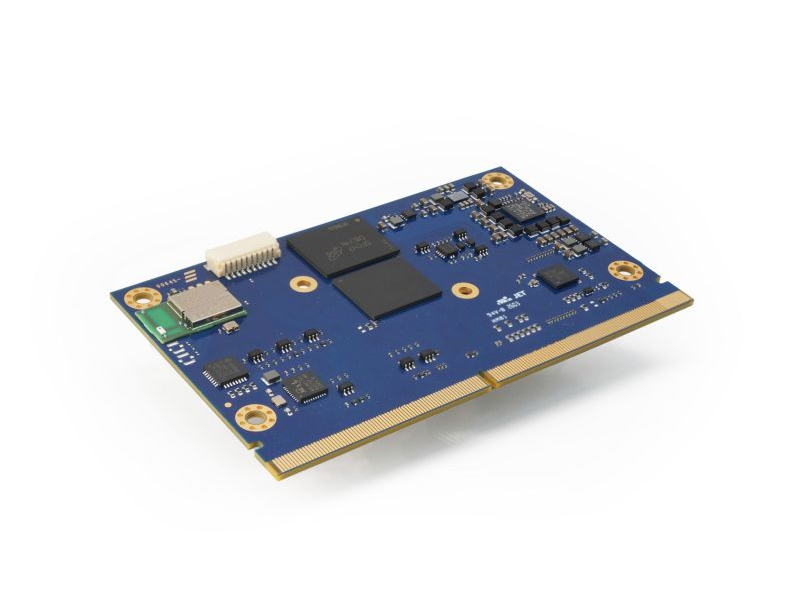

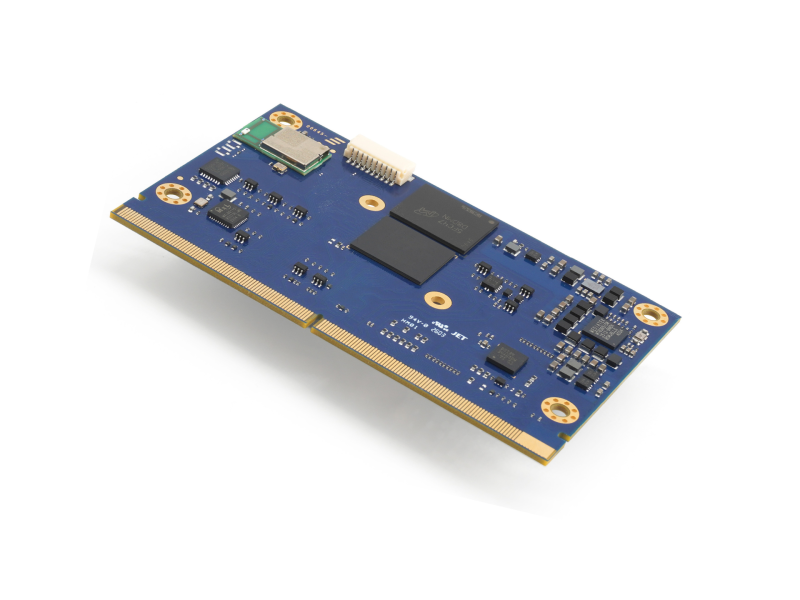

SmarCore Genio 520/720

 SmarCore Genio 520/720  based on MediaTek® Genio 520/720 processor with 10 TOPS 8th Generation NPU, 3D GPU is a powerful IoT platform equipped with generative AI capabilities and advanced multimedia features.

Specifications

CPU

  • MediaTek® Genio 520/720
  • Manufacturer: MediaTek
  • NPU
  • GPU

Cores

  • ARM
  • 2x Arm Cortex-A78, up to 2.6 GHz
    6x Arm Cortex-A55, up to 2.0 GHz
  • 8 cores

Memory

  • LPDDR5@6400MTs
  • up to 16GB

Graphics & AI

  • MediaTek 8th Generation 10 TOPS NPU
    Arm Mali-G57 MC2 up to 1.1 GHz
    OpenGL ® ES 1.1, 2.0, 3.2
    Vulkan ® 1.0, 1.1
    OpenCL up to 2.2

Video Interfaces

  • DP, DSI, eDP

Video Processing Unit Capabilities

  • 3840 x 2160@60 fps HEVC/H.264/VP9 decoder
    3840 x 2160@30 fps HEVC/H.264 encoder

Mass Storage

  • Starting from 4GB eMMC drive soldered on-board
  • EMMC

Networking

  • 1x 1Gb Ethernet

USB

  • 1x OTG
  • 4x USB2
  • 1x USB3

PCIe

  • 1
  • PCIe interface Gen2/ 1-lane

Audio

  • I2S interface

Peripheral Interfaces

  • UART, SPI, I2C, GPIOs

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2035

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

Compatible Carrier Boards

A selection of carrier boards tested and validated for reliable operation with this module.

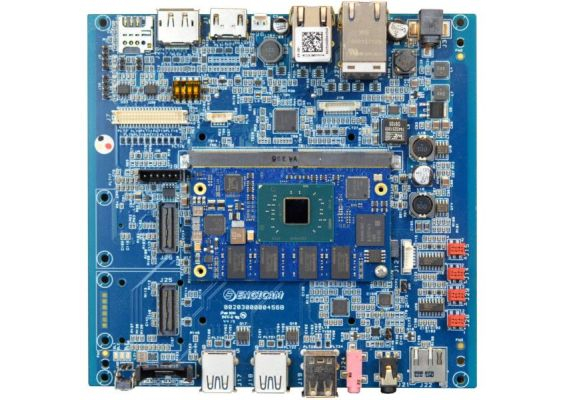

Multimedia 4K SMARC Carrier Board

General purpose carrier board Compliant with SMARC standard

View product

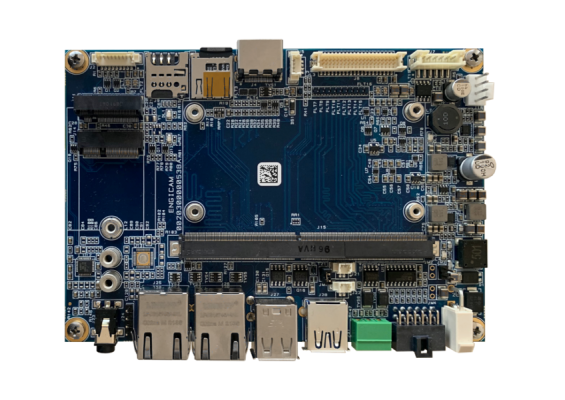

X.Touch 2.0

General purpose carrier board Compliant with standard SMARC Interface

View product

Products to complete your design

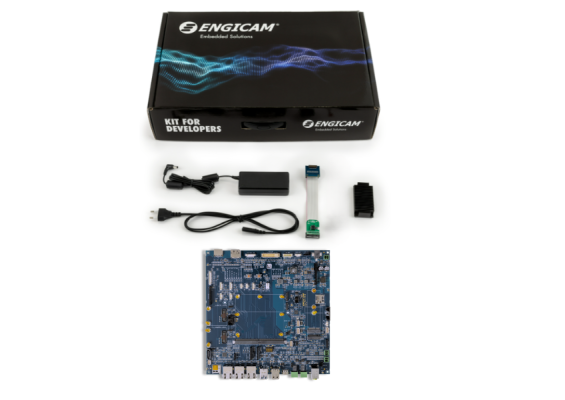

SMARC Multimedia 4K Starter Kit

SMARC Form Factor Evaluation Board

View product

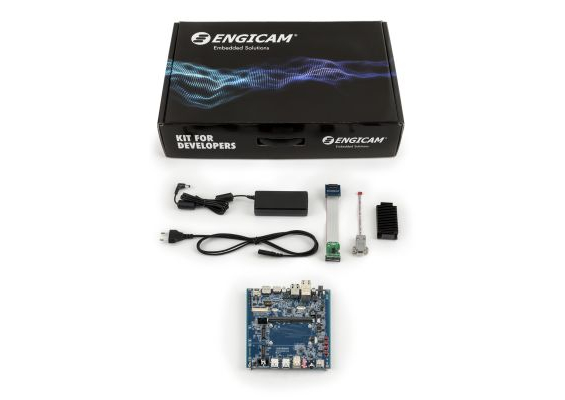

SmarCore EVABOARD

SmarCore Form Factor Capacitive Evaluation Board

View product

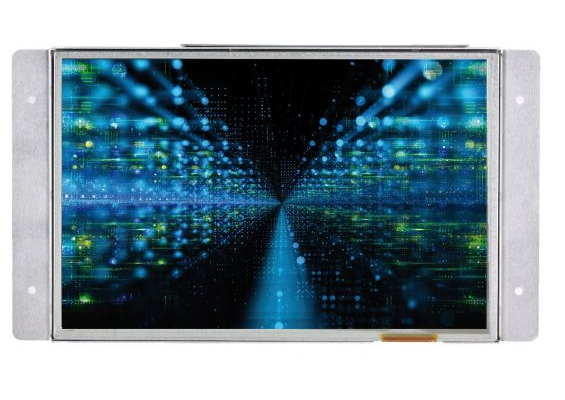

X.Touch 10.1" Ampire

X.TOUCH 10.1” AMPIRE Open Frame

View product
