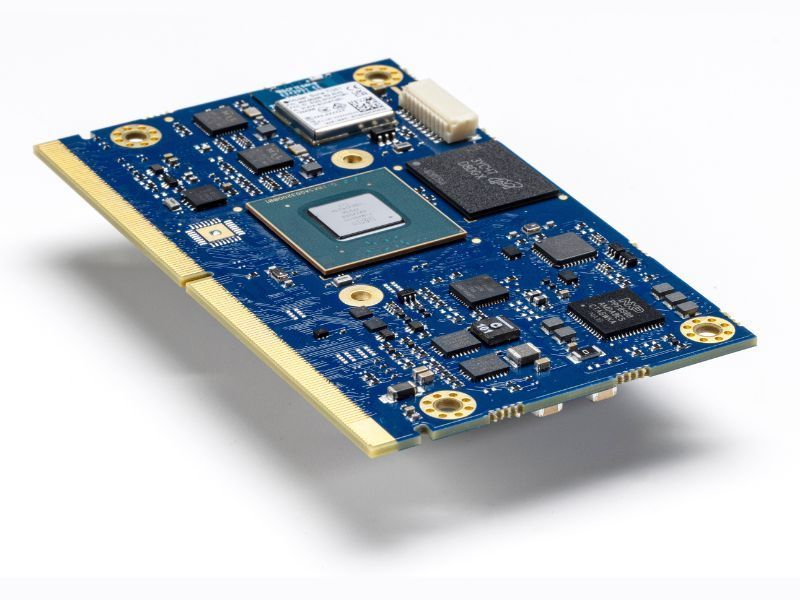

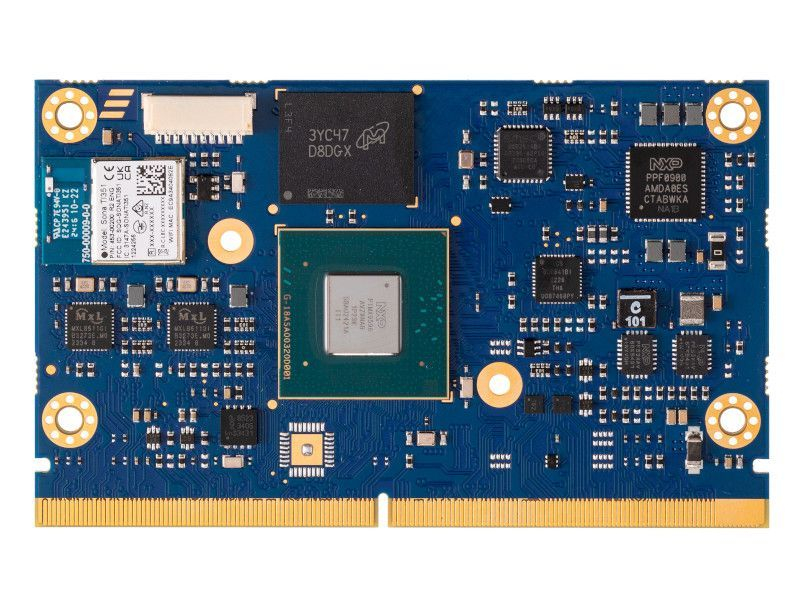

SmarCore MX95

Standard SMARC module for a wide range of edge applications from Automotive connectivity to Industry 4.0 and IoT platforms. SmarCore MX95 is based on NXP® i.MX95 processor with 2.0 TOPS NPU, 3D GPU for real-time, safety/low-power and high performance applications.

CPU NXP® i.MX95
RAM LPDDR5@6400MTs
AI CAPABILITIES 2.0 TOPS NPU
DIMENSIONS Standard SMARC short size

Specifications

CPU

  • NXP® i.MX95
  • Manufacturer: NXP
  • NPU
  • VPU
  • GPU

Cores

  • ARM
  • 6x Arm Cortex-A55
    1x Arm Cortex-M7
    1x Arm Cortex-M33

Memory

  • LPDDR5@6400MTs
  • 4GB up to 16GB

Graphics & AI

  • NXP eIQ® Neutron 2.0 TOPS NPU
    Arm Mali-G310 3D GPU supporting 50 GFLOPs FP32
    OpenGL ® ES 3.2
    Vulkan ® 1.3
    OpenCL 3.0

Video Processing Unit Capabilities

  • 4Kp60 H.265/H.264 decode or encode, 1x JPEG Encoder, 1x JPEG Decoder

Mass Storage

  • Starting from 4GB eMMC drive soldered on-board

Networking

  • 2x 1Gb Ethernet
  • 1x 10 Gb Ethernet

USB

  • 4x USB2
  • 1x USB3

PCIe

  • 2
  • PCIe interface Gen3/1-lane

Audio

  • I2S interface, SAI Interface

Peripheral Interfaces

  • UART, LPSPI, I2C, CAN Bus, GPIOs, 1x 10 Gb SGMII

Power Supply

  • single 5V

Operating Temperature

  • -40° up to 85°

Dimensions

  • 82 x 50 mm

Product availability

  • 2039
