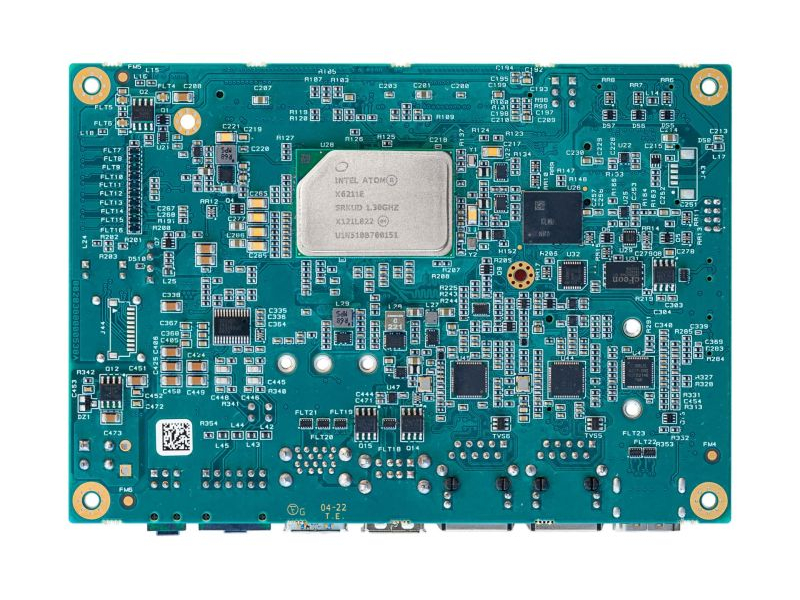

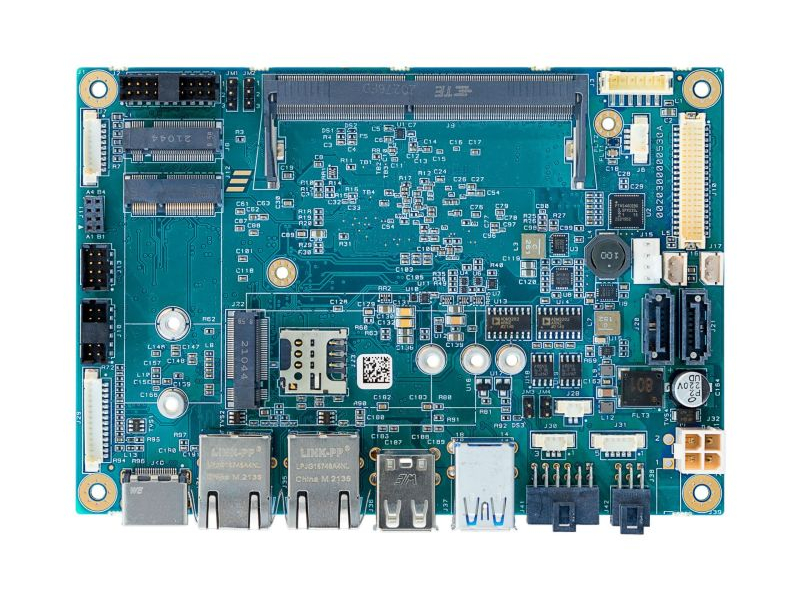

T.Board EHL

The T.Board EHL is a high-performance 3.5" Single Board Computer built on the Intel® Elkhart Lake platform, offering up to 16GB of DDR4 memory, flexible eMMC/M.2 storage, and rich industrial connectivity including dual Ethernet, CAN Bus, and PCIe.

Rated for -40°C to 85°C, it's engineered for reliable operation in demanding industrial environments.

Specifications

CPU

  • Intel® Elkhart Lake
  • Manufacturer: Intel
  • VPU
  • GPU

Cores

  • x86

Memory

  • DDR4@3733MTs
  • 2GB up to 16GB

Graphics & AI

  • Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2, Vulkan 1.0 APIs, Dedicated FIVR for Graphics, Intel® Virtualization Technology for Directed I/O (VT-d)

Video Processing Unit Capabilities

  • HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HEVC/H.265, H.264, VP9, JPEG/MJPEG enc

Mass Storage

  • Starting From 4GB eMMC drive soldered on-board, 2x SSD M.2 key B

Networking

  • 2x 1Gb Ethernet

USB

  • 2x OTG
  • 2x USB2
  • 2x USB3

PCIe

  • 3

Audio

  • Build-in HD with CS4207-CNZ Cirrus Logic (Mic, HP, Line)

Peripheral Interfaces

  • RS232, RS485/422, I2C, Jatg if, CAN Bus, GPIOs, Connector for USB Touch Controller

Power Supply

  • +12 to 24 VDC

Operating Temperature

  • -40° up to 85°

Dimensions

  • 146 x 102 mm (3.5" form factor)

Product availability

  • 2032

Documentation & Software

Access technical documents, software, and support resources.

Fact Sheet

Hardware manual

3D

Products to complete your design

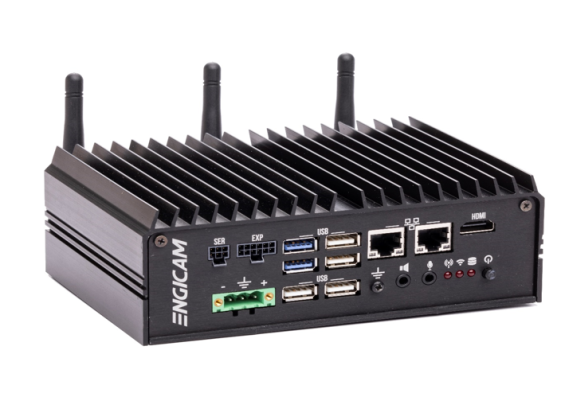

T.Box EHL
